IP65 Outdoor Advertising LED Display Pixel Pitch 4mm SMD1921 Module Size 320*160
Product Description
1.Outdoor high resolution and high brightness.
2.Ingress protection being IP65, weather proof and dust proof.
3.High brightness uniformity and color uniformity.
SC outdoor full-color technology parameters
| Unit Module | Item | Parameter |
| Model Number | SC-P4(1921) 80*40-4L 10S-V1.6 | |
| Module size | 320mm*160mm | |
| Pixel pitch | 4mm | |
| Pixels Density | 62500dot/m2 | |
| Pixel configuration | 1R1G1B | |
| Package mode | SMD1921 | |
| Pixel resolution | 80dots(W)*40dots(H) | |
| Max Power | 27.5W | |
| Module thickness | 16mm | |
| Weight | 0.58kg | |
| Drive type | Constant drive | |
| Scan mode | 1/10 | |
| Port type | HUB75 | |
| Brightness of white balance | ≥6000～6500cd/m2 | |
LED Cabinet | Dimension | 960*960 |
| Monomer Module Number | 18pcs | |
| Power supply | 5V/60A*3 pcs | |
| Thermal discharge | fan 2pcs | |
| Pixel per cabinet | 960mm*960mm | |
| Best viewing distance | 4M～10M | |
| Best viewing angle | 110°(W) 110°(H) | |
| Temperature | working:-20℃～+50℃ | |
| Relative humidity | 10%-95% | |
| Thickness | 100mm | |
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 325W/㎡ | |
| Max .Power consumption | ≤975W/㎡ | |
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
Main technical parameter | Driving device | Constant drive IC |
| Refresh frequency | ≥1920HZ | |
| Grey scale/colors | 4096gray level/16.7M colors | |
| MTBF | ≥100000hours | |
| Power switch | Automatic switch | |
| Display Mode | ≥800*600/1024*768 |
1, IP65 weather rating, ensures great quality outputs in every condition.
2,Wide color range, excellent color uniformity
3, Stable performance:superior anti UV, sulfide resistant ability, can be long-term used in outdoor
4, SMD LEDs ensure large viewing angle, up to 110° horizontally and
110° vertically.
Image no distortion, no color cast in any angle within this range,
reaches to more audiences.
5, Three anti-protection: anti-corrosion, anti-static, moisture, shock, greatly improving the reliability of the product.
6.Perfect uniformity and no mosaic.

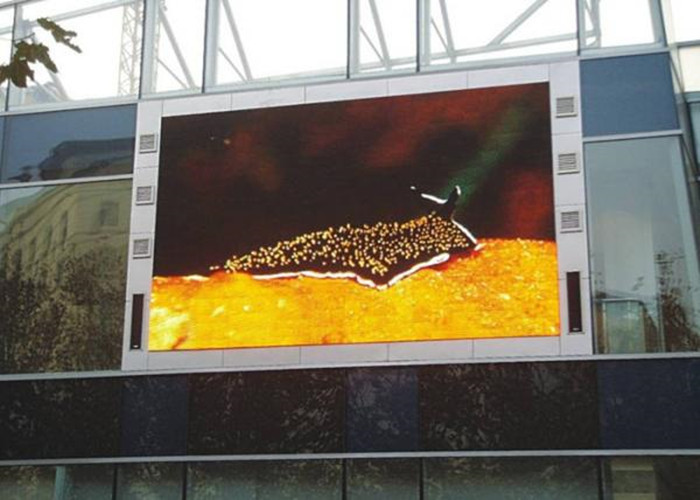

Project Show:
|
|
