| Brand Name : | Sol Colur |
| Model Number : | Outdoor Energy Saving P10 |
| Certification : | CCC IP68 CE ISO9001 ROSH |
| Price : | 14.3~ 27.67Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability : | 5000 Square Meters per Month |
| Delivery Time : | 10 days after received deposit |
| Unit Module | Item | Energy-saving | General |
| Model Number | SC-P10 (3535)-32*16-2L5S-V1.6 | SC-P10 (3535)-32*16-2L5S-V1.6 | |
| pixel pitch | 10mm | 10mm | |
| encapsulation of led | SMD3535 | SMD3535 | |
| Mudule Max Power consumption | 27W | 35W | |
| Mudule Display Resolution | 32DOTS(W) * 16DOTS(H) | 32DOTS(W) * 16DOTS(H) | |
| Drive Type | Constant drive (SUM2017TD) | Constant drive (SUM2016) | |
| pixel configuration | 1R1G1B | 1R1G1B | |
| pixel density | 10000dots/㎡ | 10000dots/㎡ | |
| driving mode | 1/2 scan | 1/2 scan | |
| module size | 320x160mm | 320x160mm | |
| HUB type | HUB75 | HUB75 | |
| Weight of a mudule | 0.58kgs | 0.58kgs | |
| brightness of white balance | ≥6500~7000cd/㎡ | ≥6500~7000cd/㎡ | |
| Thickness of a mudule | 16mm | 16mm | |
| LED Cabinet | Diecast cabinets size | 960x960mm | 960x960mm |
| Module quantity per cabinet | 18pcs | 18pcs | |
| Power supply | 3.8 V/40A*3pcs | 5 V/60A*3pcs | |
| Maintenance mode | Front or back maintenance | Front or back maintenance | |
| Thermal discharge | fan 1pcs | fan 2pcs | |
| Cabinets Display Resolution | 96*96DOTS | 96*96DOTS | |
| The best viewing distance | 4M~10M | 4M~10M | |
| The best viewing angle | H:110° / W:110° | H:110° / W:110° | |
| Environment temperature | storage:-35℃～+85℃ working:-20℃～+50℃ | storage:-35℃～+85℃ working:-20℃～+50℃ | |
| Operating humidity | 10-95% Relative humidity | 10-95% Relative humidity | |
| temperature | 100mm | 100mm | |
| Power | operating power | AC220V±10% | AC220V±10% |
| Average Power consumption | 165W/㎡ | 325W/㎡ | |
| Max.Power consumption | 494W/㎡ | 925W/㎡ | |
| Current | ≤20mA(single LED) | ≤20mA(single LED) | |
| Control system | Control method | synchronization | synchronization |
| Operation system | WIN98/2000/NT/XP/WIN7 | WIN98/2000/NT/XP/WIN7 | |
| CPU | Pentium4 or above P4 | Pentium4 or above P4 | |
| Main Technical parameter | Refresh frequency | ≥1920Hz | ≥1920Hz |
| lifespan | ≥100000Hours | ≥100000Hours | |
| Power switch | Automatic switch | Automatic switch | |
| Grey scale/colors | 4096 level/16.7M colors | 4096 level/16.7M colors | |
| Driving device | Constant drive IC | Constant drive IC |
Product Description:
1. Energy-saving Design : Power consumption is lower than DIP outdoor products, each LED electric current is below 15mA, lifespan is longer, can reduce 25-50% of the power consumption effectively, low-carbon environmental protection, save electricity for customers .
2. Wide Viewing Angle : LED SMD encapsulation technology, makes surface more smooth, the outdoor full color LED Display can reach 140 degrees viewing angle both in the horizontal and the vertical direction, this has special advantages in some place, such as wall LED Display, requires a wide viewing angle to show better advertising effect.
3. Nice Color Blending : color uniformity is good, outdoor SMD 3-in-i design technology makes all the red, green, and blue chip in one structure, distance is close, so it ensures the coherence of brightness at optional angle is very good, achieve vivid viewing effect, at the same time, the mask is dealt with special processing, can ensure the coherence of product’s brightness further.
4. High Definition : High contrast, due to 3-IN-1 design structure, full-color SMD3535 lamp bead size is small, so the light emitting area is small, the black area is large, enhances the contrast of LED Screen, the 1/2 scan mode high refresh rate, the gray level > 16384, the refresh rate > 1200 Hz,makes the outdoor full-color LED Display is clear enough to replace the traditional DIP LED Display.
5. Good Heat Dissipation: using six Angle SMD3535 lamp bead, the heat of lamp and IC can be dispersed by PCB board more effectively, improve the heat dissipation performance of LED display module significantly.
6. High Automation Production Efficiency: SMD LED can be processed by automatic SMT mounter, improving production efficiency, reducing defective product rate.
7. Light Cabinet Weight : Outdoor SMD 3-IN-1 LED uses waterproof glue filling process, because of low lamp foot, don’t need too much glue to cover the lamp foot like the DIP, the surface is nice and not deformed easily, assembling is convenient and neat. Unit module is very suitable for rental companies, truck mounted LED screen, mobile media advertising usage etc.
roduct Specification:
| Technical parameters | UNIT | P10-R |
| Pixel pitch | MM | 10 |
| Module size | MM | L320XH160X34 |
| Physical density | /M2 | 10000 |
| Pixel configuration | R | 1 |
| Driving method | 1/2scan | |
| LED Encapsulation | SMD | 3535 |
| Display resolution | DOTS | 32X16=512dots |
| Module weight | KG | 0.8 |
| Module working voltage | VDC | 5V |
| Module consumption | W | 15-20 |
| Option distance | M | 10-110 |
| Every square metre module | PCS | 20 |
| Viewing angle | Deg. | H110 V50 |
| Maximum power | W/ M2 | 400 |
| Frame Frequency | HZ/S | ≥60 |
| Refresh frequency | HZ/S | ≥400 |
| Equilibrium brightness | CD/ M2 | ≥1800 |
| Working environment temperature | 0C | -20~60 |
| Working environment humidity | RH | 10%~90% |
| Mean free error time | HOURS | >5000 |
| Life | HOURS | 100000 |
| Lamp failure frequency |

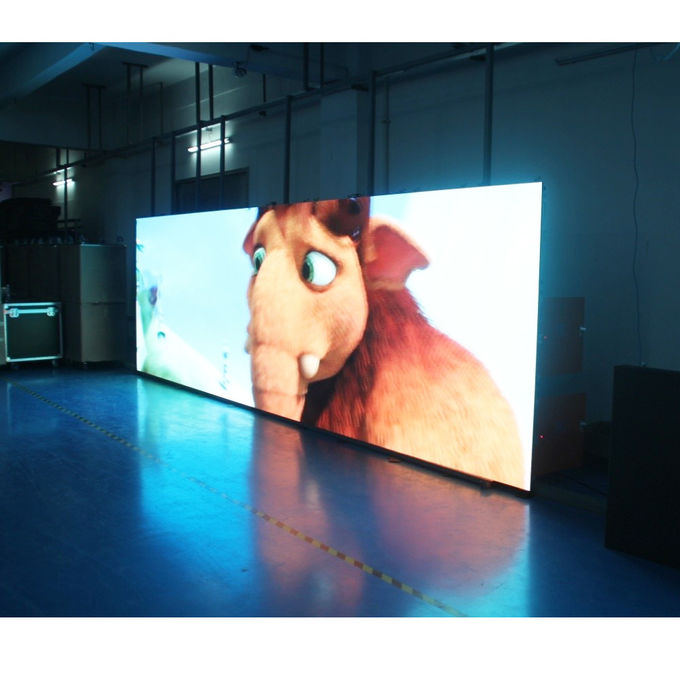

Project Case:
Instation:

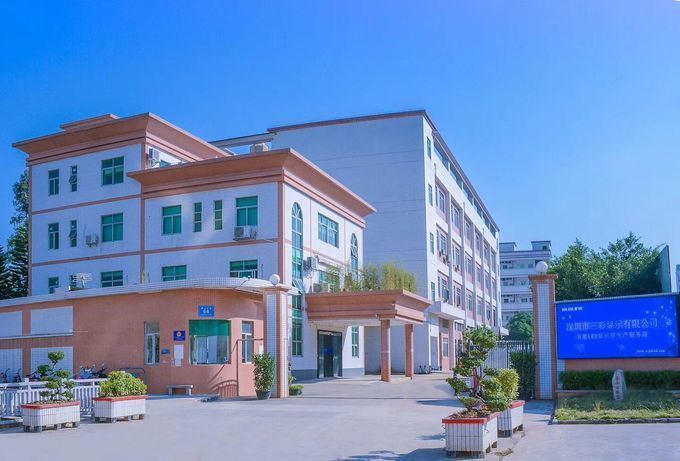

Our factory:
When it comes to LED display screen , Sol Colur is the best for sure.
Company information
SHENZHEN SOL COLUR DISPLAY CO.,LTD. was established in December 2012,Is a leading LED display applications products and solutions provider,Specialized in LED research and development, manufacturing. Sales and servic,Dedicated to providing high-quality, high-performance LED applications and solutions for professional channel customers and end-users at home and abroad.
Our products have been widely used both at home and abroad. Since its foundation, we have become one of the best LED product and solution providers in the country through our unremitting efforts and have won the industry's highest recognition
The development of the company so far, the sales outlets throughout the country, the export products exported to more than 10 countries and regions, 3C, FCC, CE.IFA, IP65, IP68, IS9001, ROSH.AAA and other qualifications, product testing reports, patent certificate
