| Brand Name : | SOL COLUR |
| Model Number : | P4 |
| Certification : | CE,ROHS,IP65 |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, , Western Union |
| Supply Ability : | 5000 Square Meter/Square Meters per Month |
| Delivery Time : | 15-20days |
High Density 27.5W Outdoor Led Video Display 1/8 Scan Mode 1R1G1B Pixel Pitch 4mm
Product Description
1.High Density,High Definition Full Color Screen
2. High Refresh Rate,High Scale Level,Much more vivid image display
performance satisfies the commercial high visual quality
requirements.
3. Support Multi-Media Play
4. Connection : Connected to computer for signal, and to power box
for electricity.
5. Maintenance: Rear service, easy replacement with enough spare
parts.
SC outdoor full-color technology parameters
| nit Module | Item | Parameter |
| Model Number | SC-P4(1921) 80*40-4L 10S-V1.6 | |
| Module size | 320mm*160mm | |
| Pixel pitch | 4mm | |
| Pixels Density | 62500dot/m2 | |
| Pixel configuration | 1R1G1B | |
| Package mode | SMD1921 | |
| Pixel resolution | 80dots(W)*40dots(H) | |
| Max Power | 33W | |
| Module thickness | 16mm | |
| Weight | 0.58kg | |
| Drive type | Constant drive | |
| Scan mode | 1/10 | |
| Port type | HUB75 | |
| Brightness of white balance | ≥6000～6500cd/m2 | |
LED Cabinet | Dimension | 960*960 |
| Monomer Module Number | 18pcs | |
| Power supply | 5V/60A*3 pcs | |
| Thermal discharge | fan 2pcs | |
| Pixel per cabinet | 960mm*960mm | |
| Best viewing distance | 4M～10M | |
| Best viewing angle | 110°(W) 110°(H) | |
| Temperature | working:-20℃～+50℃ | |
| Relative humidity | 10%-95% | |
| Thickness | 100mm | |
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 325W/㎡ | |
| Max .Power consumption | ≤975W/㎡ | |
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
Main technical parameter | Driving device | Constant drive IC |
| Refresh frequency | ≥1920HZ | |
| Grey scale/colors | 4096gray level/16.7M colors | |
| MTBF | ≥100000hours | |
| Power switch | Automatic switch | |
| Display Mode | ≥800*600/1024*768 |
1, IP65 weather rating, ensures great quality outputs in every condition.
2,High-definition. with 62500dots/m2, it promise smooth and fluent video effect
3, Super light weight, super slim, easy to transport and less freight cost
4, SMD LEDs ensure large viewing angle, up to 110° horizontally and
110° vertically.
Image no distortion, no color cast in any angle within this range,
reaches to more audiences.
5, 4mm high definition for outdoor advertising use, clear performance.

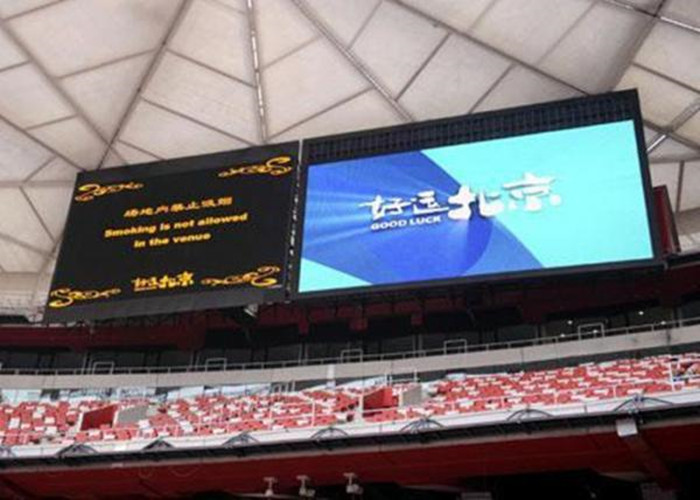

Project Show:
|
|
