Professional LED Dispaly Manufacturer.
8 Years
| Ask Lasest Price | |
| Brand Name : | SOL COLUR |
| Model Number : | P10 |
| Certification : | IP65,EMC,CE |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability : | 5000 Square Meter/Square Meters per Month |
| Delivery Time : | 15-20days |
1R1G1B Outdoor SMD LED Display Brightness 6800-7200 1R1G1B Pixel Configuration
Product Description
1. personalized and complete solution for your requirement
2. factory price and good quality
3. convenient and fast installation ,easy maintenance
4.SMD led encapsulation confirm wide view distance and good uniformity
5. High brightness,good waterproof IP65,anti-corrosion,anti-rust,long life span>100000hours
6. Lower power consumption,good heat dissipation,low noise created.
P10 outdoor full-color technology parameters
| sUnit Module | Item | Parameter |
| Model Number | SF-SS10-4S-A | |
| Module size | 320mm*160mm | |
| Pixel pitch | 10mm | |
| Pixels Density | 10000dots/m2 | |
| Pixel configuration | 1R1G1B | |
| Package mode | SMD3535 | |
| Pixel resolution | 32dots(W)*16dots(H) | |
| Max Power | 35W | |
| Module thickness | 22mm | |
| Weight | 0.37kg | |
| Drive type | Constant drive | |
| Scan mode | 1/4 | |
| Port type | HUB75-A | |
| Brightness of white balance | ≥6800～7200cd/m2 | |
LED Cabinet | Dimension | 960mm*960mm*100 mm |
| Monomer Module Number | 18pcs | |
| Power supply | 5V/40A*4pcs | |
| Thermal discharge | fan 2pcs | |
| Pixel per cabinet | 96mm*96mm | |
| Best viewing distance | 8M～15M | |
| Best viewing angle | 120°(W) 110°(H) | |
| Temperature | storage:-35℃～+85℃ working:-20℃～+50℃ | |
| Relative humidity | 10%-95% | |
| Thickness | 122mm | |
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 180W/㎡ | |
| Max Power consumption | ≤480W/㎡ | |
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
Main technical parameter | Driving device | Constant drive IC |
| Refresh frequency | ≥1200HZ | |
| Grey scale/colors | 4096gray level/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | ≥800*600/1024*768 |
Product Feature
1. The total gold ratio is 320*160, specially for matching national star lamp beads.
2. Private module kit, module before and after maintenance all waterproof.
3. Installation mode: outdoor wireless easy connection.
4. The luminance can be adjusted automatically according to external environment.
5. No loss of gray level, refresh , only reduce IC current and save energy.

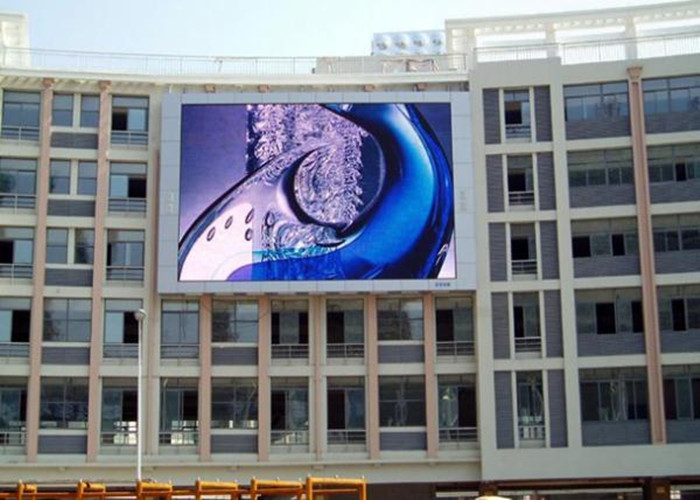

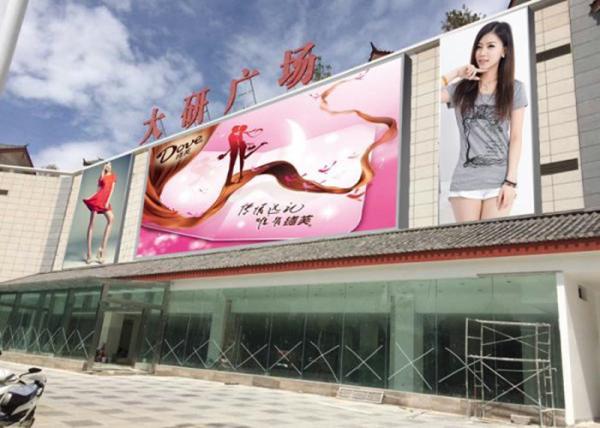

Project Show:
|
|
