SMD3535 HD Advertising Led Display Screen , Full Color Led Video Billboards P5
Product Description
1.High brightness,brightness can be customized and adjusted by customer according to customer requirement.
2.Wide viewing degree and good vision.
3.Packed in fly case which is good for transportation.
4.Certification: CE, FCC, ROHS
5.save cost for control system and packing charges,freight.
P5 outdoor full-color technology parameters
| Unit Module | Item | Parameter |
| Model Number | SF-SS5-8-A | |
| Module size | 320mm*160mm | |
| Pixel pitch | 5mm | |
| Pixels Density | 40000dots/m2 | |
| Pixel configuration | 1R1G1B | |
| Package mode | SMD2727 | |
| Pixel resolution | 64dots(W)*32dots(H) | |
| Max Power | 25W | |
| Module thickness | 22mm | |
| Weight | 0.37kg | |
| Drive type | Constant drive | |
| Scan mode | 1/8 | |
| Port type | HUB75-A | |
| Brightness of white balance | ≥5500～6000cd/m2 | |
LED Cabinet | Dimension | 960mm*960mm*100 mm |
| Monomer Module Number | 36pcs | |
| Power supply | 5V/40A*6pcs | |
| Thermal discharge | fan 2pcs | |
| Pixel per cabinet | 96mm*96mm | |
| Best viewing distance | 5M～15M | |
| Best viewing angle | 120°(W) 110°(H) | |
| Temperature | storage:-35℃～+85℃ working:-20℃～+50℃ | |
| Relative humidity | 10%-95% | |
| Thickness | 122mm | |
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 350W/㎡ | |
| Max Power consumption | ≤1200W/㎡ | |
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
Main technical parameter | Driving device | Constant drive IC |
| Refresh frequency | ≥1920HZ | |
| Grey scale/colors | 4096gray level/16.7M colors | |
| MTBF | ≥10000hours | |
| Power switch | Automatic switch | |
| Display Mode | ≥800*600/1024*768 |
Features:
1.Outdoor high resolution 27,777 pixels per square meter for high image quality.
2,Suit for strict weather conditions with IP65 rating.
3,Seamless splicing.
4, Energy saving: low electric current, high-bright.
5, Super high brightness 6000nits makes led screen still be very clear under the sunshine.
6,.Scientific structure design and cooling system ensures the stability and reliability, even long time continuous use.

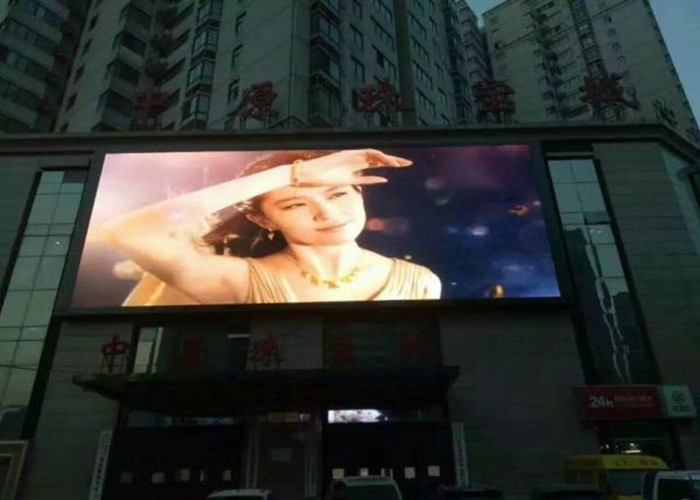

Project Show:
|
|
