Professional LED Dispaly Manufacturer.
8 Years
| Ask Lasest Price | |
| Brand Name : | SOL COLUR |
| Model Number : | P4 |
| Certification : | CE,CCC,IP65 |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, , Western Union |
| Supply Ability : | 5000 Square Meter/Square Meters per Month |
| Delivery Time : | 15-20days |
Pixel Pitch 4mm Outdoor Advertising LED Display 1/8 Scan Mode Module Size 320*160
Product Description

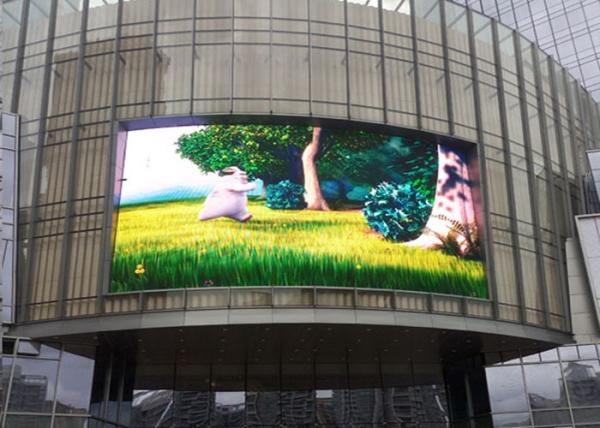

1. Application: Outdoor media, advertising, billboard, sports
scoreboard, etc.
2. Installation : Wall-mounted, Standing pillar, Building roof.
3. Control: by computer and software ;.
4. Connection : Connected to computer for signal, and to power box
for electricity.
5. Maintenance: Rear service, easy replacement with enough spare
parts.
SC outdoor full-color technology parameters
SC outdoor full-color technology parameters
| nit Module | Item | Parameter |
| Model Number | SC-P4(1921) 80*40-4L 10S-V1.6 | |
| Module size | 320mm*160mm | |
| Pixel pitch | 4mm | |
| Pixels Density | 62500dot/m2 | |
| Pixel configuration | 1R1G1B | |
| Package mode | SMD1921 | |
| Pixel resolution | 80dots(W)*40dots(H) | |
| Max Power | 33W | |
| Module thickness | 16mm | |
| Weight | 0.58kg | |
| Drive type | Constant drive | |
| Scan mode | 1/10 | |
| Port type | HUB75 | |
| Brightness of white balance | ≥6000～6500cd/m2 | |
LED Cabinet | Dimension | 960*960 |
| Monomer Module Number | 18pcs | |
| Power supply | 5V/60A*3 pcs | |
| Thermal discharge | fan 2pcs | |
| Pixel per cabinet | 960mm*960mm | |
| Best viewing distance | 4M～10M | |
| Best viewing angle | 110°(W) 110°(H) | |
| Temperature | working:-20℃～+50℃ | |
| Relative humidity | 10%-95% | |
| Thickness | 100mm | |
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 325W/㎡ | |
| Max .Power consumption | ≤975W/㎡ | |
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
Main technical parameter | Driving device | Constant drive IC |
| Refresh frequency | ≥1920HZ | |
| Grey scale/colors | 4096gray level/16.7M colors | |
| MTBF | ≥100000hours | |
| Power switch | Automatic switch | |
| Display Mode | ≥800*600/1024*768 |
1, IP65 weather rating, ensures great quality outputs in every condition.
2, Good heat dissipation, with special fans ventilation design.
3, High fresh rate up to 1,920Hz, high contrast ration 4,000:1, vivid color.
4, SMD LEDs ensure large viewing angle, up to 110° horizontally and
110° vertically.
Image no distortion, no color cast in any angle within this range,
reaches to more audiences.
5, 4mm high definition for outdoor advertising use, clear performance.
|
|
