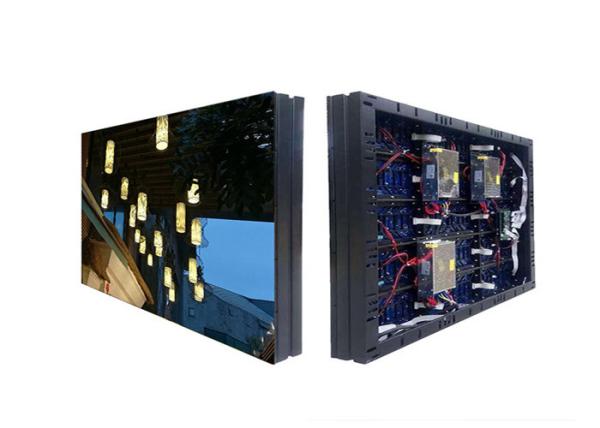

SMD 3535 Outdoor Advertising LED Display 1/4 Scan Mode Module Size 320*160
Product Description
1.Patented LED SMD3535 are used for this model, which guarantee a wide viewing angle(>110°H;>120°W) and a nice flatness appearance. Brightness>6500CD/SQM.
2.light weight, Graceful and concise appearence; with Protection grade IP65 Suitable for all outdoor working environment.
3.Fast locks at the four sides of the cabinet, easy assembly; and be piled up and be hoisted.
4.Waterproof connectors, safe and steady.
5.Wire all adopt the national standard of pure copper wire, led screen has throughed the CCC, CE ,IP65,EMC, ROHS and CCC,certification
P10 outdoor technology parameters
| sUnit Module | Item | Parameter |
| Model Number | SF-SS10-4S-A | |
| Module size | 320mm*160mm | |
| Pixel pitch | 10mm | |
| Pixels Density | 10000dots/m2 | |
| Pixel configuration | 1R1G1B | |
| Package mode | SMD3535 | |
| Pixel resolution | 32dots(W)*16dots(H) | |
| Max Power | 35W | |
| Module thickness | 22mm | |
| Weight | 0.37kg | |
| Drive type | Constant drive | |
| Scan mode | 1/4 | |
| Port type | HUB75-A | |
| Brightness of white balance | ≥6800～7200cd/m2 | |
LED Cabinet | Dimension | 960mm*960mm*100 mm |
| Monomer Module Number | 18pcs | |
| Power supply | 5V/40A*4pcs | |
| Thermal discharge | fan 2pcs | |
| Pixel per cabinet | 96mm*96mm | |
| Best viewing distance | 8M～15M | |
| Best viewing angle | 120°(W) 110°(H) | |
| Temperature | storage:-35℃～+85℃ working:-20℃～+50℃ | |
| Relative humidity | 10%-95% | |
| Thickness | 122mm | |
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 180W/㎡ | |
| Max Power consumption | ≤480W/㎡ | |
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
Main technical parameter | Driving device | Constant drive IC |
| Refresh frequency | ≥1200HZ | |
| Grey scale/colors | 4096gray level/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | ≥800*600/1024*768 |
Product Features:
1.color spots or picture shade will be removed through the adjustment of brightness and color by each independent pixel
2, adopted with self developed steel structure and special kits will be kept in good flatness and smoothness
3, strict water proof testing by Ip65
4, according to environmental changes the brightness can be adjusted automatically for energy saving
5, special PVC kits are adopted to protect from corrosion according to coastal weather
|
|
