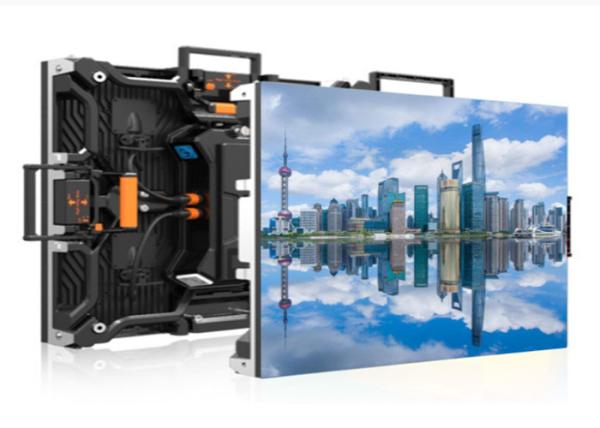

SMD 2727 Outdoor Rental LED Display 38.5W Pixel Pitch 4.81mm 1/13 Scan Mode
Product Description
1.PH4.81mm SMD Indoor LED Display Module, with power cables;
2.LED modules can work with Nova, Linsn, Colorlight,Xixun LED
Conrol Card ,etc.
3. High precision module suite, to achieve high-quality seamless
effect.
4. High quality LED lamp black, with a black mask, the contrast up
to 2000: 1.
5.High refresh rate,the display is stable, no ripples, no flicker,
display real and natural.
6.The products based on CE, FCC,ROHS Certification.
OUTDOOR P4.81 SMD 3IN1 TECHNICAL PARAMETERS
| Unit Module | Item | Parameter |
| Model Number | SF-SS4.81-13S-A | |
| Module size | 250mm*250mm | |
| Pixel pitch | 4.81mm | |
| Pixels Density | 43264 dot/m2 | |
| Pixel configuration | 1R1G1B | |
| Package mode | Nationstar SMD2727 | |
| Pixel resolution | 52dots(W)*52 dots (H) | |
| Max Power | 38.5W | |
| Weight | 0.58kg | |
| Drive type | Constant drive | |
| Scan mode | 1/13 | |
| Port type | HUB75-A | |
| Brightness of white balance | ≥4850cd/m2 |
LED Cabinet | Dimension | 500mm*500mm |
| Monomer Module Number | 4pcs | |
| Power supply | 5V/60A*1pcs | |
| Thermal discharge | fan 2pcs | |
| Pixel per cabinet | 104mm*104mm | |
| Best viewing distance | 2M～14M | |
| Best viewing angle | 110°(W) 110°(H) | |
| Temperature | storage:-35℃～+85℃ working:-20℃～+50℃ | |
| Relative humidity | 10%-95% | |
| Thickness | 100mm |
| ower | Working voltage | AC110～220V±10% |
| Average Power consumption | 200W/㎡ | |
| Max Power consumption | <400W/㎡ | |
| Current | <20mA(single LED) | |
| Control system | CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
Main technical parameter | Driving device | Constant drive IC |
| Refresh frequency | >1920HZ | |
| Grey scale/colors | 16384gray level/16.7M colors | |
| MTBF | >9000hours | |
| Power switch | Automatic switch | |
| Display Mode | ≥800*600/1024*768 |
|
