Professional LED Dispaly Manufacturer.
8 Years
| Ask Lasest Price | |
| Brand Name : | SOL COLUR |
| Model Number : | P10 |
| Certification : | CCC,RoHS,IP65 |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability : | 5000 Square Meter/Square Meters per Month |
| Delivery Time : | 15-20days |
Pixel Pitch 10mm Outdoor Led Video Display Brightness 4500-5500 Scan Mode 1/4
Product Description
1. Steady and reliable system: with strong anti-interference ability and long service life that can continually work for over 24 hours, and it's easy to operate the system.
2.High refresh rate, high brightness and high contrast which make the screen without any delay and smear phenomenon under directly sunlight.
3.Environment protection, antistatic, dust-proof, good heat dissipation, cost-effective.
4. Fit for the outdoor fixed commercial applications such as shopping mall, mobile truck ,single/double pole mounted,wall mounted.
5. Convenient installation and maintenance of display modules.
P10 outdoor technology parameters
| sUnit Module | Item | Parameter |
| Model Number | SF-SS10-4S-A | |
| Module size | 320mm*160mm | |
| Pixel pitch | 10mm | |
| Pixels Density | 10000dots/m2 | |
| Pixel configuration | 1R1G1B | |
| Package mode | SMD3535 | |
| Pixel resolution | 32dots(W)*16dots(H) | |
| Max Power | 35W | |
| Module thickness | 22mm | |
| Weight | 0.37kg | |
| Drive type | Constant drive | |
| Scan mode | 1/4 | |
| Port type | HUB75-A | |
| Brightness of white balance | ≥6800～7200cd/m2 | |
LED Cabinet | Dimension | 960mm*960mm*100 mm |
| Monomer Module Number | 18pcs | |
| Power supply | 5V/40A*4pcs | |
| Thermal discharge | fan 2pcs | |
| Pixel per cabinet | 96mm*96mm | |
| Best viewing distance | 8M～15M | |
| Best viewing angle | 120°(W) 110°(H) | |
| Temperature | storage:-35℃～+85℃ working:-20℃～+50℃ | |
| Relative humidity | 10%-95% | |
| Thickness | 122mm | |
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 180W/㎡ | |
| Max Power consumption | ≤480W/㎡ | |
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
Main technical parameter | Driving device | Constant drive IC |
| Refresh frequency | ≥1920HZ | |
| Grey scale/colors | 4096gray level/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | ≥800*600/1024*768 |
Features:
1. Good quality and reasonable price.
2. High Brightness and Refresh Rate.
3. Energy Saving.
4. Good display effect and vivid image.
5. Efficient After-sales.
6 Low consumption, stable performance, highly durable.

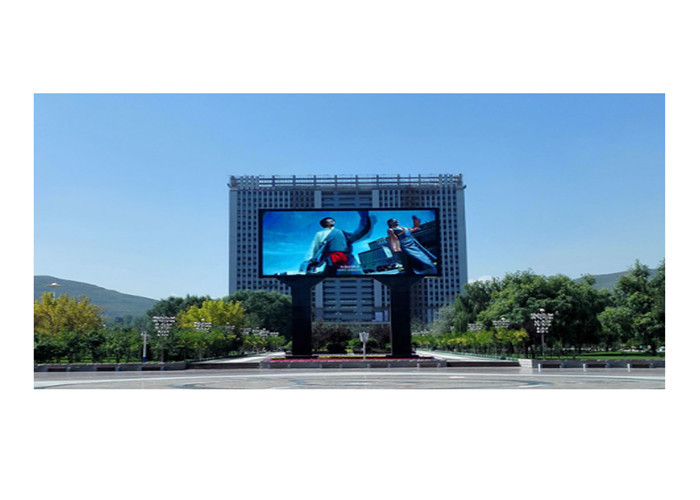

Project Show:
|
|
