| Brand Name : | SOL COLUR |
| Model Number : | P6 |
| Certification : | CE, EMC, IP65 |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability : | 5000 Square Meter/Square Meters per Month |
| Delivery Time : | 15-20 Days |
1R1G1B Pixel Outdoor Led Advertising Screens , Large Led Display Panels 35W P10
Product Description
1.Outdoor Magnesium alloy Cabinet,so lighter and thinner.
P10 outdoor technology parameters
| sUnit Module | Item | Parameter |
| Model Number | SF-SS10-4S-A | |
| Module size | 320mm*160mm | |
| Pixel pitch | 10mm | |
| Pixels Density | 10000dots/m2 | |
| Pixel configuration | 1R1G1B | |
| Package mode | SMD3535 | |
| Pixel resolution | 32dots(W)*16dots(H) | |
| Max Power | 35W | |
| Module thickness | 22mm | |
| Weight | 0.37kg | |
| Drive type | Constant drive | |
| Scan mode | 1/4 | |
| Port type | HUB75-A | |
| Brightness of white balance | ≥6800～7200cd/m2 | |
LED Cabinet | Dimension | 960mm*960mm*100 mm |
| Monomer Module Number | 18pcs | |
| Power supply | 5V/40A*4pcs | |
| Thermal discharge | fan 2pcs | |
| Pixel per cabinet | 96mm*96mm | |
| Best viewing distance | 8M～15M | |
| Best viewing angle | 120°(W) 110°(H) | |
| Temperature | storage:-35℃～+85℃ working:-20℃～+50℃ | |
| Relative humidity | 10%-95% | |
| Thickness | 122mm | |
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 180W/㎡ | |
| Max Power consumption | ≤480W/㎡ | |
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
Main technical parameter | Driving device | Constant drive IC |
| Refresh frequency | ≥1200HZ | |
| Grey scale/colors | 4096gray level/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | ≥800*600/1024*768 |
Product features
1. High uniformity display color.
2. rich in content: can display text, graphics, images, animation, video information.
3 IP65 grade for high performance waterproof and dustproof capability.
4. High quality LED chip and high anti-static electricity capacity.
5. Ultra-high brightness, low attenuation, high reliability and weather ability.
6 excellent viewing angle: both horizontal and vertical have a large viewing angle, which is suitable for environments with wide horizontal distribution and large height difference.

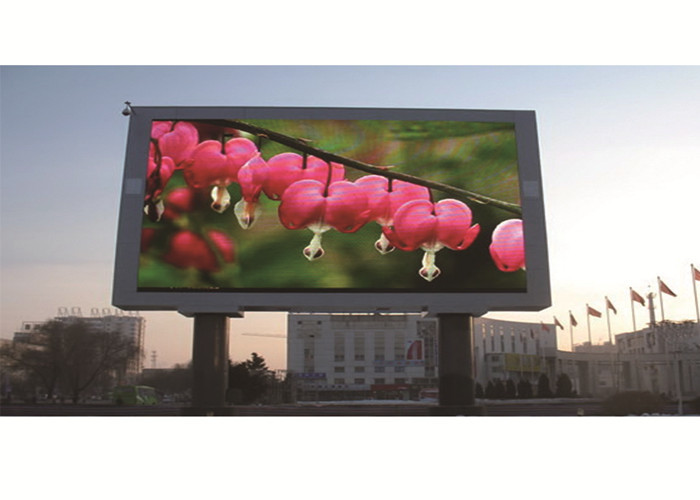

Project Show:
|
|
