Professional LED Dispaly Manufacturer.
8 Years
| Ask Lasest Price | |
| Brand Name : | SC |
| Model Number : | P3 Indoor |
| Certification : | CE.3C,FCC,ROSH,ISO9001 |
| Price : | USD14.3~17.67/PCS |
| Payment Terms : | D/A, D/P, T/T, Western Union |
| Supply Ability : | 5000 Square Meters per Month |
| Delivery Time : | 10 days after received deposit |
Product Features:
1, Pixel density is 111111 dots per square meter, high resolution
brings HD visual effect.
2, Adopts black SMD2121, higher contrast ratio, the display effect
is very good.
3, IC MBI5124 is used, high refresh rate, high grey scale level and
high accurate color consistency guarantee the vivid pictures and
perfect videos.
4, Die-cast aluminum with CNC is finished, the dimension tolerance
of less than 0.01mm, and module shaping one time, the machining
accuracy of + 0.01mm, easy to realize seamless splicing.
5, There are three handles for lifting cabinets, aviation plug and
fast lock on each side is equipped, makes very convenient and
comfortable for fast installation by one person without tools,
besides guarantee seamless installation and keep smoothly
Application:
Widely used in stage, concert, live on TV, wedding, conference and
commercial advertising etc.
Description
Simple cabinet,cabient size 960mmx960mm,module size
320mm*320mm,mininum viewing distance 10m,special for sports and
stadium showing events showing, Made in China
Technical specification
| ※Specifications of the module | |||
| Technical parameters | UNIT | Parameters values | |
| Pixel pitch | MM | 3 | |
| Panel size | MM | L192*H96*T13 | |
| Physical density | /M2 | 111111 | |
| Pixel configuration | R/G/B | 1,1,1 | |
| Driving method | Constant current 1/16scan | ||
| LED Encapsulation | SMD | 2121 | |
| Display resolution) | DOTS | 64X32=2048 | |
| Module weight | KG | 0.18 | |
| Module port | HUB75-B | ||
| Module working voltage | VDC | 5 | |
| Module consumption | W | 30 | |
| ※Specifications of LED cabinet | |||
| Viewing angle | Deg. | 140° | |
| Option distance | M | 3-45 | |
| Driving device | 16016 | ||
| Every square metre module | PCS | 54.25 | |
| Maximum power | W/ M2 | 900 | |
| Frame Frequency | HZ/S | ≥60 | |
| Refresh frequency | HZ/S | ≥320 | |
| Equilibrium brightness | CD/ M2 | ≥1200 | |
| Working environment temperature | 0C | -10~60 | |
| Working environment humidity | RH | 10%～70% | |
| Display working voltage | VAC | AC46～54HZ,220V±15%/110V±15% | |
| Colour temperature | 8500K-11500K | ||
| Gray scale/color | ≥16.7M color | ||
| Input signal | RF S-Video RGB etc | ||
| Control system | PCTV nonlinearity card,DVI display card,Linsn control system | ||
| Mean free error time | HOURS | ＞5000 | |
| Life | HOURS | 100000 | |
| Lamp failure frequency | ＜0.0001 | ||
| Antijam | IEC801 | ||
| Safety | GB4793 | ||
| Resist the electricity | 1500V last 1min No breakdown | ||
| Steel box weight | KG/ M2 | 40(standard steel box) | |
| Earth leakage current | mA | ||
| IP rating | The back IP40,The front IP50 | ||

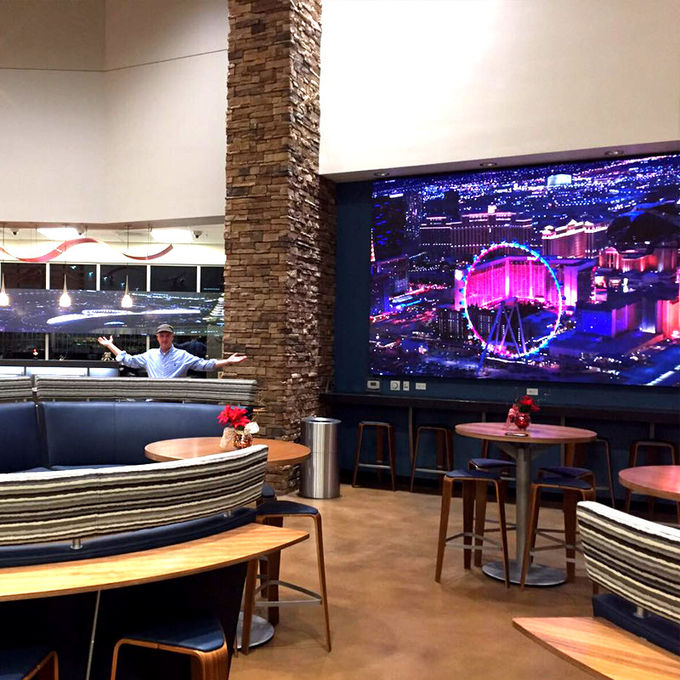

Project Cases
Instation:
Our factory:
Company information
SHENZHEN SOL COLUR DISPLAY CO.,LTD. was established in December
2012,Is a leading LED display applications products and solutions
provider,Specialized in LED research and development,
manufacturing. Sales and servic,Dedicated to providing
high-quality, high-performance LED applications and solutions for
professional channel customers and end-users at home and abroad.
Our products have been widely used both at home and abroad. Since
its foundation, we have become one of the best LED product and
solution providers in the country through our unremitting efforts
and have won the industry's highest recognition
The development of the company so far, the sales outlets throughout
the country, the export products exported to more than 10 countries
and regions, 3C, FCC, CE.IFA, IP65, IP68, IS9001, ROSH.AAA and
other qualifications, product testing reports, patent certificate
