46W P8 Advertising Screen Outdoor Full Color Video Outdoor Led
Screen 3.8 V/40A Power supply
Product Specification:
| Unit Module | Item | Energy-saving | General |
| Model Number | SC-P8(3535)-40*40-2L5S-V1.6-V1.6 | SC-P8(3535)-40*40-2L5S-V1.6-V1.6 | |
| module size | 320x320mm | 320x320mm | |
| pixel pitch | 8mm | 8mm | |
| Pixel density | 15625dots/m2 | 15625dots/m2 | |
| Pixel configuration | 1R1G1B | 1R1G1B | |
| Encapsulation of led | SMD3535 | SMD3535 | |
| Mudule Max Power consumption | 46W | 66W | |
| Mudule Display Resolution | 40DOTS(W) * 40DOTS(H) | 40DOTS(W) * 40DOTS(H) | |
| Thickness of a mudule | 16mm | 16mm | |
| Weight of a mudule | 1.5kgs | 1.5kgs | |
| Drive Type | Constant drive (SUM2028) | Constant drive (SUM2028) | |
| driving mode | 1/5 scan constant current | 1/5 scan constant current | |
| HUB type | HUB75 | HUB75 | |
| brightness of white balance | ≥4500~5000cd/m2 | ≥4500~5000cd/m2 | |
| LED Cabinet | Diecast cabinets size | 960x960mm | 960x960mm |
| Module quantity per cabinet | 9pcs | 9pcs | |
| Power supply | 3.8 V/40A*3pcs | 5V V/60A*3pcs | |
| Maintenance mode | Front or back maintenance | Front or back maintenance | |
| Thermal discharge | fan 2pcs | fan 2pcs | |
| Cabinets Display Resolution | 96*96DOTS | 96*96DOTS | |
| The best viewing distance | 4M~10M | 4M~10M | |
| The best viewing angle | H:110° / W:110° | H:110° / W:110° | |
| Environment temperature | storage:-35℃～+85℃ working:-20℃～+50℃ | storage:-35℃～+85℃ working:-20℃～+50℃ | |
| Operating humidity | 10-95% Relative humidity | 10-95% Relative humidity | |
| temperature | 100mm | 100mm | |
| Power | operating power | AC220V±10% | AC220V±10% |
| Average Power consumption | 200W/㎡ | 325W/㎡ | |
| Max.Power consumption | 608W/㎡ | 935W/㎡ | |
| Current | ≤20mA(single LED) | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above P4 | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | WIN98/2000/NT/XP/WIN7 | |
| Control method | synchronization | synchronization | |
| Main Technical parameter | Driving device | Constant drive IC | Constant drive IC |
| Refresh frequency | ≥1920Hz | ≥1920Hz | |
| Grey scale/colors | 4096 level/16.7M colors | 4096 level/16.7M colors | |
| lifespan | ≥100000Hours | ≥100000Hours | |
| Power switch | Automatic switch | Automatic switch |
1 . New mask design makes LED light almost zero reflection, which
ensures the screen displaying effect;
2 . The cabinet of unit modules adopts to high-temperature spraying
technology, the antirust function is greatly improved;
3 . Module surface flatness ± 0.2mm, the entire screen has good
flatness;
4 . High uniformity display color;
5 . For improving the service life, PCB is made by wave soldering
process with the green oxygen isolation layer, which prevents the
line of moisture and oxidation.
6 . Service efficiency of the screen switch power supply is
increased substantially, which reduces power failure rate;
7 . Using fishbone bus line greatly reduces the contact problem;
8 . IP65 grade for high performance waterproof and dustproof
capability;
9 . -25℃ – 65℃ working environment for outdoor display, adapted to
the harsh environment;

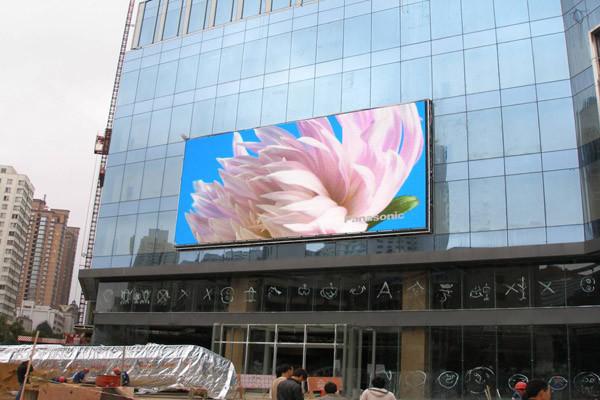

Project Show:
Company information
SHENZHEN SOL COLUR DISPLAY CO.,LTD. was established in December
2012,Is a leading LED display applications products and solutions
provider,Specialized in LED research and development,
manufacturing. Sales and servic,Dedicated to providing
high-quality, high-performance LED applications and solutions for
professional channel customers and end-users at home and abroad.
Our products have been widely used both at home and abroad. Since
its foundation, we have become one of the best LED product and
solution providers in the country through our unremitting efforts
and have won the industry's highest recognition
The development of the company so far, the sales outlets throughout
the country, the export products exported to more than 10 countries
and regions, 3C, FCC, CE.IFA, IP65, IP68, IS9001, ROSH.AAA and
other qualifications, product testing reports, patent certificate

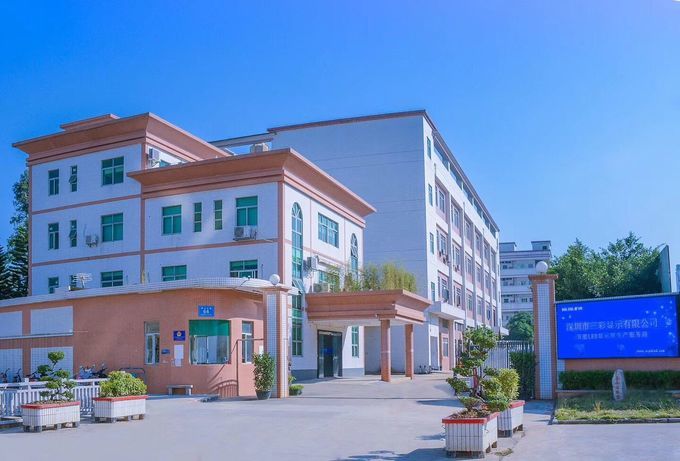

Our factory:
