    Lightweight P8 Outdoor Led Screen Exterior Led Display Easy To Maintain

    Ask Lasest Price
    Brand Name : SOL COLUR
    Model Number : P8
    Certification : IP65,CE,EMC
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 5000 Square Meter/Square Meters per Month
    Delivery Time : 15-20days
    • Product Details
    • Company Profile

    Lightweight P8 Outdoor Led Screen Exterior Led Display Easy To Maintain

    Pixel Pitch 8mm Outdoor Advertising LED Display Brightness 4800-5500 Easy To Maintain


    Product Description

    1. Nice appearance and simple structures.

    2. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.

    3. Humanized operating interface with breakdown indicator lights, easy to maintain.

    4. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.


    P8 technology parameters

    Unit ModuleItemParameter
    Model NumberSF-SS8-4-A
    Module size320mm*160mm
    Pixel pitch8mm
    Pixels Density15625dots/m2
    Pixel configuration1R1G1B
    Package modeSMD2727
    Pixel resolution40dots(W)*20dots(H)
    Max Power25W
    Module thickness22mm
    Weight0.37kg
    Drive typeConstant drive
    Scan mode1/4
    Port typeHUB75-A
    Brightness of white balance≥6200~6500cd/m2

    LED Cabinet


    Dimension1024mm*768mm*100 mm
    Monomer Module Number24pcs
    Power supply5V/40A*4pcs
    Thermal dischargefan 2pcs
    Pixel per cabinet128mm*96mm
    Best viewing distance8M~15M
    Best viewing angle120°(W) 110°(H)
    Temperature

    storage:-35℃~+85℃

    working:-20℃~+50℃

    Relative humidity10%-95%
    Thickness122mm
    PowerWorking voltageAC220V±10%
    Average Power consumption330W/㎡
    Max Power consumption≤1100W/㎡
    Current≤20mA(single LED)
    Control systemCPUPentium4 or above P4
    Operation systemWIN98/2000/NT/XP/WIN7
    Control methodSynchronization

    Main technical

    parameter

    Driving deviceConstant drive IC
    Refresh frequency≥1920HZ
    Grey scale/colors4096gray level/16.7M colors
    MTBF≥100000hours
    Power switchAutomatic switch
    Display Mode≥800*600/1024*768
    Product Features:

    1. Can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment.

    2. With good lightening accordance and no mosaic.

    3. Different video frequency can be changed freely at the same time, and the image.

    4. usually use for advertising outdoor.

    5. High brightness, and can be adjustable, meets the need of changing requirement.

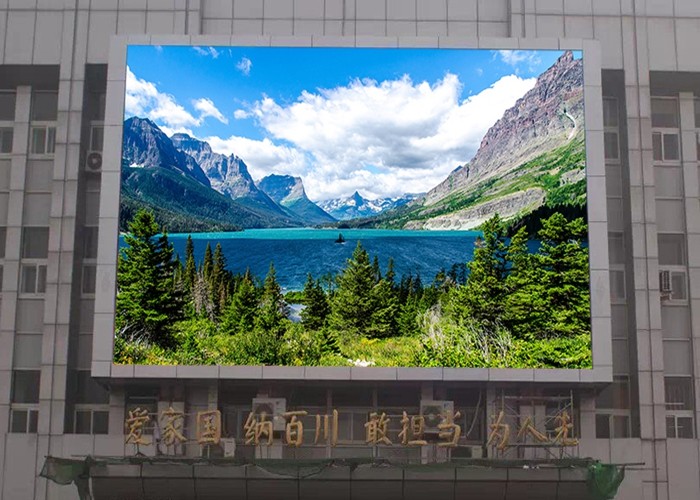

    Project Show:
    Lightweight P8 Outdoor Led Screen Exterior Led Display Easy To Maintain
