P1.25 Small Pixel Pitch Led Screen Indoor Led Video Display 48W

SHENZHEN SOL COLUR DISPLAY CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap P1.25 Small Pixel Pitch Led Screen Indoor Led Video Display 48W from wholesalers

    Buy cheap P1.25 Small Pixel Pitch Led Screen Indoor Led Video Display 48W from wholesalers
    • Buy cheap P1.25 Small Pixel Pitch Led Screen Indoor Led Video Display 48W from wholesalers

    P1.25 Small Pixel Pitch Led Screen Indoor Led Video Display 48W

    Ask Lasest Price
    Brand Name : sol colur
    Model Number : p1.25
    Certification : FCC、Rosh、CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 5000 Square Meters/ per momth
    Delivery Time : 15-20days
    • Product Details
    • Company Profile

    P1.25 Small Pixel Pitch Led Screen Indoor Led Video Display 48W

    Small Pixel Pitch Led Curtain Wall Display , Indoor Led Advertising Screen 48W


    Product Description:


    1) high density, high contrast, high brightness.

    2) high precision, seamless stitching of any size, wide viewing angle, low power consumption, high life expectancy, natural and realistic image.

    3) disassembly and assembly are quick and easy

    4) with high adjusttable brightness,it can fully satisfy various customer requirements.

    5) synchronously adjust the brightness and color to make the true and exquisite image.


    Product Parameters:

    Unit ModuleItemParameter
    Model NumberSF-TS1.25-40S-A
    Module size200100
    Pixel pitch1.25mm
    Pixels Density640000dots/m2
    Pixel configuration1R1G1B
    Package modeNationstarSMD1010
    Pixel resolution160dots(W)*80dots(H)
    Max Power consumpion48W
    Module thickness14.75mm
    Weight0.4kg
    Drive typeConstant drive
    Scan mode40S
    Port typeHUB75-A
    Brightness of white balance≥800cd/m2

    Cabinet


    Dimension400mm300mm
    Quanty of Module8pcs
    Power supply5V/60A*1pcs
    Thermal dischargefan1pcs
    Pixel per cabinet320*240mm
    Best viewing distance2M~18M
    Best viewing distance140°(W) 140°(H)
    Temperature

    storage:-35℃~+85℃

    working:-20℃~+50℃

    Opration humidity10%-95%
    Thickness85mm

    Power

    Working voltageAC220V±10%
    Average Power consumption168W/㎡
    Max.Power consumption≤560W/㎡
    Current≤20mA(single LED)

    Control system

    CPUPentium4or above P4 or can more
    Operation systemWIN98/2000/NT/XP
    Control methodSynchronization

    Main technical

    parameter

    Driving deviceConstant currentdriver IC
    Refresh frequency≥1920HZ
    Grey scale/colors

    4096gray levels/color(RGB)/16.7M colors

    MTBF≥100000hours
    Power switchAutomatic switch

    Advantage:

    1. seamless, high definition, perfect display

    2. point by point correction, uniform luminance chromaticity

    3. ultra wide angle of view, any perfect display

    4. low brightness and high ash nondestructive technology

    5. intelligent brightness adjustment, automatic comfort matching environment

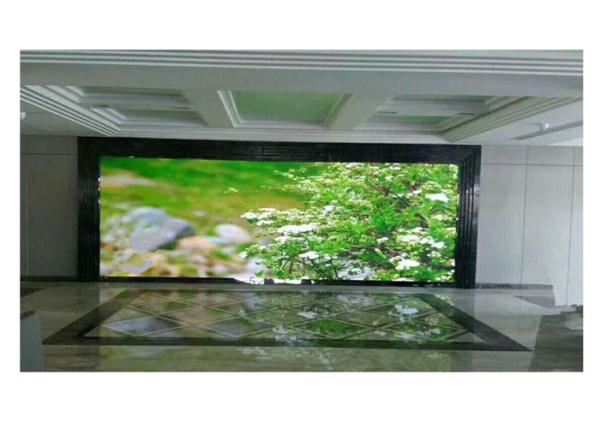

    Project Show:
    P1.25 Small Pixel Pitch Led Screen Indoor Led Video Display 48W
