Professional LED Dispaly Manufacturer.
8 Years
| Ask Lasest Price | |
| Brand Name : | SOL COLUR |
| Model Number : | P6 |
| Certification : | IP65,EMC,FCC |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability : | 5000 Square Meter/Square Meters per Month |
| Delivery Time : | 15-20days |
Pixel Pitch 6mm SMD Outdoor Led Display Module Size 320mm*160mm Max Power 25W
P6 outdoor full-color technology parameters
| Unit Module | Item | Parameter |
| Model Number | SF-SS6-8-A | |
| Module size | 320mm*160mm | |
| Pixel pitch | 6mm | |
| Pixels Density | 27777 dots /m2 | |
| Pixel configuration | 1R1G1B | |
| Package mode | SMD2727 | |
| Pixel resolution | 54dots(W)*27dots(H) | |
| Max Power | 25W | |
| Module thickness | 17.5mm | |
| Weight | 0.38kg | |
| Drive type | Constant drive | |
| Scan mode | 1/8 | |
| Port type | HUB75-B | |
| Brightness of white balance | ≥6000～6500cd/m2 | |
LED Cabinet | Dimension | 960mm*960mm*100 mm |
| Monomer Module Number | 25pcs | |
| Power supply | 5V/40A*5pcs | |
| Thermal discharge | fan 2pcs | |
| Pixel per cabinet | 96mm*96mm | |
| Best viewing distance | 6M～30M | |
| Best viewing angle | 120°(W)110°(H) | |
| Temperature | storage:-35℃～+85℃ working:-20℃～+50℃ | |
| Relative humidity | 10%-95% | |
| Thickness | 122mm | |
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 400W/㎡ | |
| Max Power consumption | ≤1200W/㎡ | |
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
Main technical parameter | Driving device | Constant drive IC |
| Refresh frequency | ≥1920HZ | |
| Grey scale/colors | 4096gray level/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | ≥800*600/1024*768 |
Product features
1. After a dustproof and waterproof tested to reach its target IP65.
2. Large viewing angle and smooth displaying provide excellent visual effect from every angle.
3. High quality LED chip and high anti-static electricity capacity.
4. Ultra-high brightness, low attenuation, high reliability and weather ability.
5. Widely used in advertising, sports, industrial enterprises, transportation, stations, terminals, airports, construction, education system and other public places.

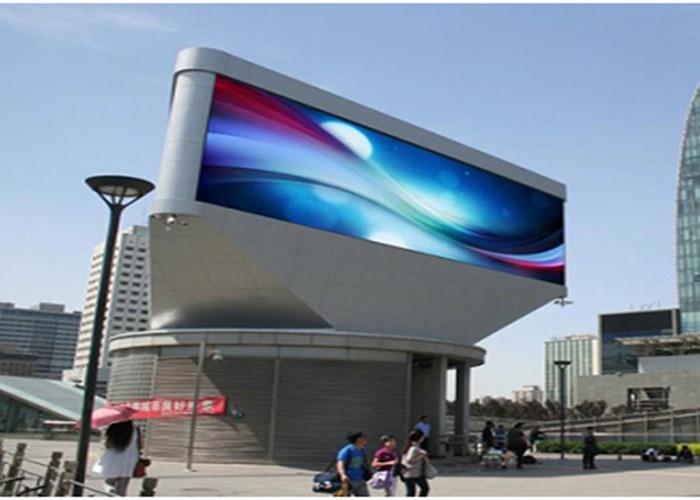

Project Show:
|
|
