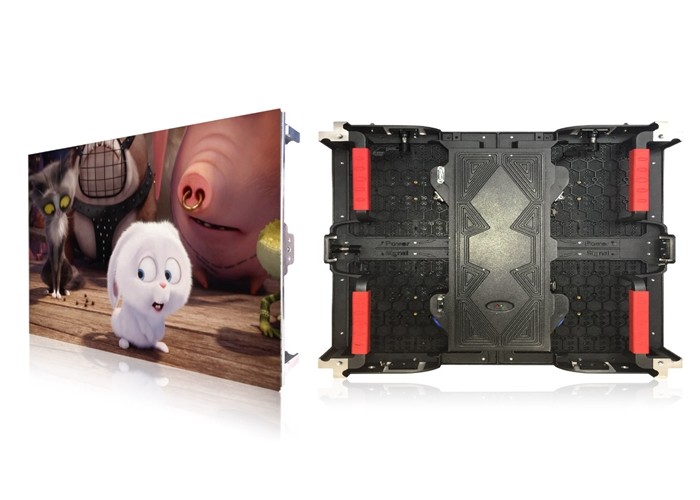

    1R1G1B Stage Led Screen , P3.91 Led Video Display Panels High Resolution

    Ask Lasest Price
    Brand Name : sol colur
    Model Number : p3.91
    Certification : EMC、IP65、FCC
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 5000 Square Meters/ per momth
    Delivery Time : 15-20days
    • Product Details
    • Company Profile

    1R1G1B Stage Led Screen , P3.91 Led Video Display Panels High Resolution

    P3.91 stage background led display high resolution 64*64 led display

    Detailed Product Description:
    MOdule size: 250*250mm Thickness: 100mm

    Control method: Synchronization Color: 1R1G1B

    Module number: Stage P3.91 Package mode: Nationstar SMD1921

    Warranty: 2 Years Pixel resolution: 64dots(W)*64dots(H)

    Product Parameters:


    Unit Module

    ItemParameter
    Model NumberSF-SS3.91-16S-A
    Module size250mm*250mm
    Pixel pitch3.91mm
    Pixels Density65536dots/m2
    Pixel configuration1R1G1B
    Package modeNationstar SMD1921
    Pixel resolution64dots(W)*64dots(H)
    Max Power38W
    Module thickness13.41mm
    Weight0.58kg
    Drive typeConstant drive
    Scan mode16S
    Port typeHard connection of 4 sets of signals
    Brightness of white balance≥4300cd/m2

    Cabinet


    Dimension500mm*500mm
    Monomer Module Number4pcs
    Power supply5V/60A*1pcs
    Thermal dischargefan 2pcs
    Pixel per cabinet128mm*128mm
    Best viewing distance10M~30M
    Best viewing angle110°(W) 110°(H)
    Temperature

    storage:-35℃~+85℃

    working:-20℃~+50℃

    Relative humidity10%-95%
    Thickness100mm

    Power

    Working voltageAC220V±10%
    Average Power consumption200W/㎡
    Max.Power consumption≤400W/㎡
    Current≤20mA(single LED)

    Control system

    CPUPentium4 or above P4 or can more
    Operation systemWIN98/2000/NT/XP/WIN7
    Control methodSynchronization

    Main technical

    parameter

    Driving deviceConstant drive IC
    Refresh frequency≥1200HZ
    Grey scale/colors4096gray level/16.7M colors
    MTBF≥9000hours
    Power switchAutomatic switch


    Advantage:

    1.The die casting aluminum box is of high strength, strong toughness and high precision.
    2.Waterproof - all waterproof performance, withstand rainstorm test, IP65 or above protection.
    3.High intensity and can be adjusted, so can meet the request of the customers according the application environment.
    4.Quick - box connection adopts quick lock, arc lock and fast installation speed.

    Project Show:
    1R1G1B Stage Led Screen , P3.91 Led Video Display Panels High Resolution
