Professional LED Dispaly Manufacturer.
8 Years
| Ask Lasest Price | |
| Brand Name : | SOL COLUR |
| Model Number : | P5 |
| Certification : | CE,FCC,RoHS |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability : | 5000 Square Meter/Square Meters per Month |
| Delivery Time : | 15-20days |
1R1G1B 25W Outdoor Advertising LED Display Constant Drive Low Power Consumption
Product description
1. High performance, cost effective.
2. Low power consumption, energy saving and friendly use.
3. Short leading time for fast delivery.
4. Certification: CE, FCC, ROHS
5. Long lifespan up to 100,000 hours.
P5 outdoor full-color technology parameters
| Unit Module | Item | Parameter |
| Model Number | SF-SS5-8-A | |
| Module size | 160mm*160mm | |
| Pixel pitch | 5mm | |
| Pixels Density | 40000dots/m2 | |
| Pixel configuration | 1R1G1B | |
| Package mode | SMD2727 | |
| Pixel resolution | 32dots(W)*32dots(H) | |
| Max Power | 25W | |
| Module thickness | 22mm | |
| Weight | 0.37kg | |
| Drive type | Constant drive | |
| Scan mode | 1/8 | |
| Port type | HUB75-A | |
| Brightness of white balance | ≥5500～6000cd/m2 | |
LED Cabinet | Dimension | 960mm*960mm*100 mm |
| Monomer Module Number | 36pcs | |
| Power supply | 5V/40A*6pcs | |
| Thermal discharge | fan 2pcs | |
| Pixel per cabinet | 96mm*96mm | |
| Best viewing distance | 5M～15M | |
| Best viewing angle | 120°(W) 110°(H) | |
| Temperature | storage:-35℃～+85℃ working:-20℃～+50℃ | |
| Relative humidity | 10%-95% | |
| Thickness | 122mm | |
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 350W/㎡ | |
| Max Power consumption | ≤1200W/㎡ | |
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
Main technical parameter | Driving device | Constant drive IC |
| Refresh frequency | ≥1920HZ | |
| Grey scale/colors | 4096gray level/16.7M colors | |
| MTBF | ≥10000hours | |
| Power switch | Automatic switch | |
| Display Mode | ≥800*600/1024*768 |
Functin of LED Display:
1, Video in any format can be played
2, Picture can by played and logo and text can be added on the picture
3, Animations,cartoons,text
4, Date,Time and clock
5, Display internal data from database or excel
6, LED Display can be splicing to several parts and play its information sepatately.

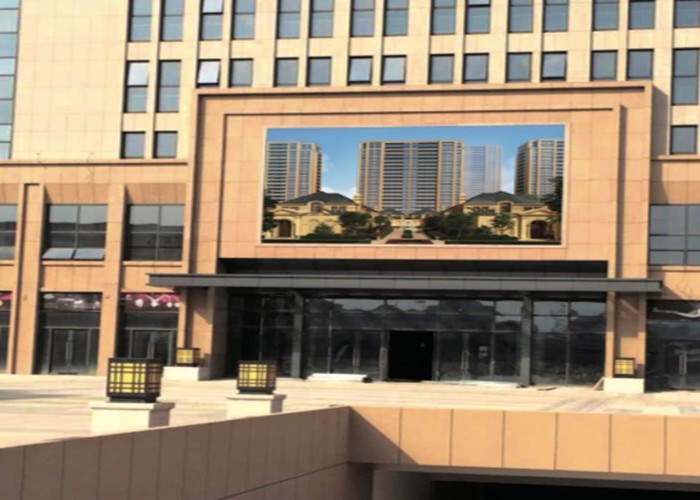

Project Show:
|
|
