    P6 Full Color Outdoor Led Display Screen Video Wall 8S Scan Mode Constant Drive

    Ask Lasest Price
    Brand Name : sol colur
    Model Number : p6
    Certification : EMC、3C、IP65
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 5000 Square Meters/ per momth
    Delivery Time : 15-20days
    • Product Details
    • Company Profile

    P6 Full Color Outdoor Led Display Screen Video Wall 8S Scan Mode Constant Drive

    6mm outdoor P6 full color led screen display for advertising led video wall


    Detailed Product Description:


    Module size: 192*192 Brightness: 5000-5500
    Control method: Synchronization Color: Full color
    Module number: Outdoor P6 Package: Nationstar SMD 2727
    Warranty: 2Years Pixel resolution: 32dots(W)*32dots(H)

    Product Parameters:



    Unit Module

    ItemParameter
    Model NumberSF-SS6-8-A
    Module size192*192mm
    Pixel pitch6mm
    Pixels Density27778dots/m2
    Pixel configuration1R1G1B
    Package modeNationstar SMD 2727
    Pixel resolution32dots(W)*32 dots(H)
    Max Power25W
    Module thickness17.5mm
    Weight0.38kg
    Drive typeConstant drive
    Scan mode8S
    Port typeHUB75-B
    Brightness of white balance≥6000-6500cd/m2

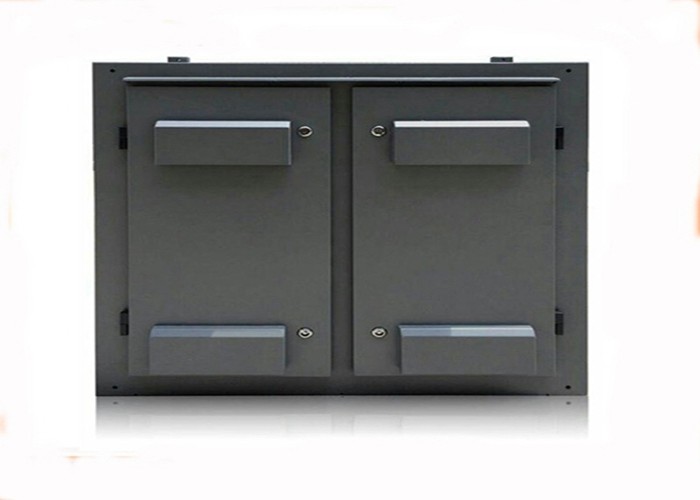

    Cabinet


    Dimension960mm*960mm*100 mm
    Monomer Module Number25pcs
    Power supply5V/40A*5pcs
    Thermal dischargefan 2pcs
    Pixel per cabinet96mm*96mm
    Best viewing distance6M~30M
    Best viewing angle120°(W)110°(H)
    Temperature

    storage:-35℃~+85℃

    working:-20℃~+50℃

    Relative humidity10%-95%
    Thickness122mm

    Power

    Working voltageAC220V±10%
    Average Power consumption400W/㎡
    Max.Power consumption≤1200W/㎡
    Current≤20mA(single LED)

    Control system

    CPUPentium4 or above P4 or can more
    Operation systemWIN98/2000/NT/XP/WIN7
    Control methodSynchronization

    Main technical

    parameter

    Driving deviceConstant drive IC
    Refresh frequency≥1920HZ
    Grey scale/colors

    4096gray level/16.7M colors

    MTBF≥100000hours
    Power switchAutomatic switch

    Advantage:

    1. High resolution
    2. Good after-sales service
    3. Large viewing angle and smooth displaying provide excellent visual effect from every angle.
    4. The integration of lamp and driving IC, together with with the multi-circuit structure, achieves evenly- distributed current, low power consumption and fast heat dissipation.
    5. High refresh rate, high gray scale, ghost-canceling, low power consumption, low EMI, anti-creeping, multi-route redundancy backup-supporting, and dot-by-dot-calibration.
    Project Show:

    P6 Full Color Outdoor Led Display Screen Video Wall 8S Scan Mode Constant DriveP6 Full Color Outdoor Led Display Screen Video Wall 8S Scan Mode Constant Drive
