Professional LED Dispaly Manufacturer.
8 Years
| Ask Lasest Price | |
| Brand Name : | SC |

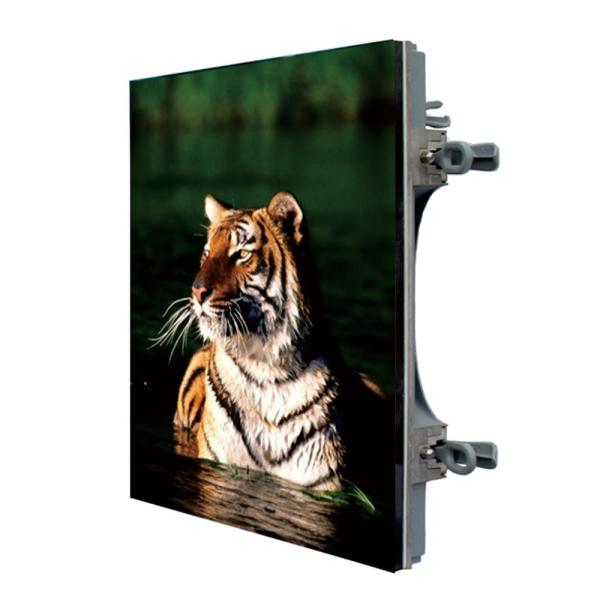

| Model Number : | Indoor SMD P10 |
| Certification : | CCC IP68 CE |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T |
| Supply Ability : | 5000 Square Meter/Square Meters per Month |
| Delivery Time : | 10 days after received deposit |
| No | Item | Parameter |
| 1 | Cabinet Size | 640mm*960mm*80mm |
| 2 | Brightness/Adjustment | ≥1600cd/m²,level16 automatic/level 100manual opertation |
| 3 | View Angle | ≥120°(Horizontal),≥120°(Vertical) |
| 4 | Best View Distance | 10-25m |
| 5 | Grey Scale | Within 65536 step |
| 6 | Frame Frequency | ≥60Hz |
| 7 | Refresh Rate | ≥1920Hz |
| 8 | Signal Input Source | Video,VGA/computer control,video Sychronization,real type display |
| 9 | Scan Mode | 1/4 scan |
| 10 | Drive IC | MBI 5024 |
| 11 | Module Qty / M2 | 19.5 |
| 12 | Display Color Qty | 16777216 color |
| 13 | Color Temperature | 25000 |
| 14 | Continuous Working Time | >24(Hrs) |
| 15 | Screen Lifespan | >100,000(Hrs) |
| 16 | MTBF | >5000(Hrs) |
| 17 | Max. power consumption | 490W/㎡ |
| 18 | Ave. power consumption | 165W/㎡ |
| 19 | Out of control pixel rate | ≤3/10,000(discrete distribution) |
| 20 | Control Distance | 100M(Ethernet) 500M(Multi-fiber) 10KM(Sigle-fiber) |
| 21 | Flatness | Screen Surface≤0.5mm,Pixel Pitch≤0.3mm |
| 22 | Operation Temperature | -10℃～+50℃ |
| 23 | Working Humidity | 10%～98%RH |
| 24 | Storage Temperature | -40℃～+85℃ |
| 25 | Software Connection | Standard Computer Connection,Compatiable With Windows,Unix,Novell |
| 26 | protection system | Overtemperature/overload/power/image compensation/nonlinear correction |
| 27 | Working Valtage | 200~240 V |
| 28 | Dielectric Strength | 50HZ/1500V(AC RMS)/1min |
| 29 | Temperature Rise | Metal≤40K,Insulation≤65K , After Heat Balance |
| 30 | IP Grade | IP43 |
| 31 | Computer display mode | 1024*768 |
| 32 | Media Player | LED Professional Media Player |
