    Outdoor Flexible LED Display Screen Modularization Design 40*320mm Module

    Ask Lasest Price
    Brand Name : SC
    Model Number : P10 Outdoor
    Certification : CE.3C,FCC,ROSH,ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 5000 Square Meter/Square Meters per Month
    Delivery Time : 10 days after received deposit
    • Product Details
    • Company Profile

    Outdoor Flexible LED Display Screen Modularization Design 40*320mm Module

    Super Thin Flexible Led Video Wall , 360°Round Flexible Video Screen For Government Project


    Description


    360°round,For government project,Hotel project
    1. bendable, it can be assembled at any uneven or irregular locations.

    2. Super thin
    Flexible LED Sign is one of the thinnest &lightest LED signs in the world with special materials and advanced technology. Every module is weight of 800g.

    3. Easy to splice, install and maintain
    Modularization design and no other connected cables make the installation so easy.User just mounts iron sheet or magnetic product on the surface in the first,then stick the Flexible LED sign on the surface .

    4. Low power consumption
    The maximal power consumption of a module is less than 12W

    5. Wide application
    Can be used in so many fields and occasions ,especially in all kinds of irregular buildings . For example hotel advertising,stage renting,television,shopping


    Product Features:


    A, Used for restaurants, hotels, bar, shopping malls, different stores etc.


    B, Controlling:asynchronous control


    C, Effect:The creative appearance and wonderful showing effect attracts most attention during the usage.


    Modules


    ItemsParameter
    Product ModelP10mm
    Module size40mm*320mm
    Pixel pitch10mm
    Pixel density10000dots/m2
    Pixel configuration1R1G1B
    Module resolution4dots(W)*32dots(H)
    Module maximum power consumption13W
    Module Thickness3.5CM
    Module Weight0.3kg
    Driving methodConstant Current Driving
    Scanning method1/4
    InterfaceHUB10
    Brightness≥6500cd/m2


    LED cabinet


    Cabinet size64mm96mm
    Module quantity48
    Power supply5V/40A 5V/60A
    Cabinet resolution64*96
    Optimal viewing distance5M~50M
    Optimal viewing angle160°(W) 120°(H)
    RHWorking temperature

    In stock :-35℃~+85℃

    Working :-20℃~+50℃

    System operating humility10%-95%

    Power supplierOperating Voltage:AC220V±10%
    Average power consumption350W/H
    Maximum power consumption≤600W/㎡
    Electric current≤20mA(single LED)

    Control system


    Control PanelsPentium4 or above P4 Or above

    Control system


    WIN98/2000/NT/XP
    Control modelSynchronization control
    main technical parametersDriving deviceIC Constant Current Driving
    Refresh rate≥600HZ
    Grey scaleRGB Each 256, can display 16.7M colors)
    MTBF≥9000hours
    Power switchAutomatic Switch
    Display Mode800*600/1024*768/1280*900

    Warranty:


    2 years quality guaranteed, necessary design drawing and user manual step by step will be offered to you.


    Product Pictures

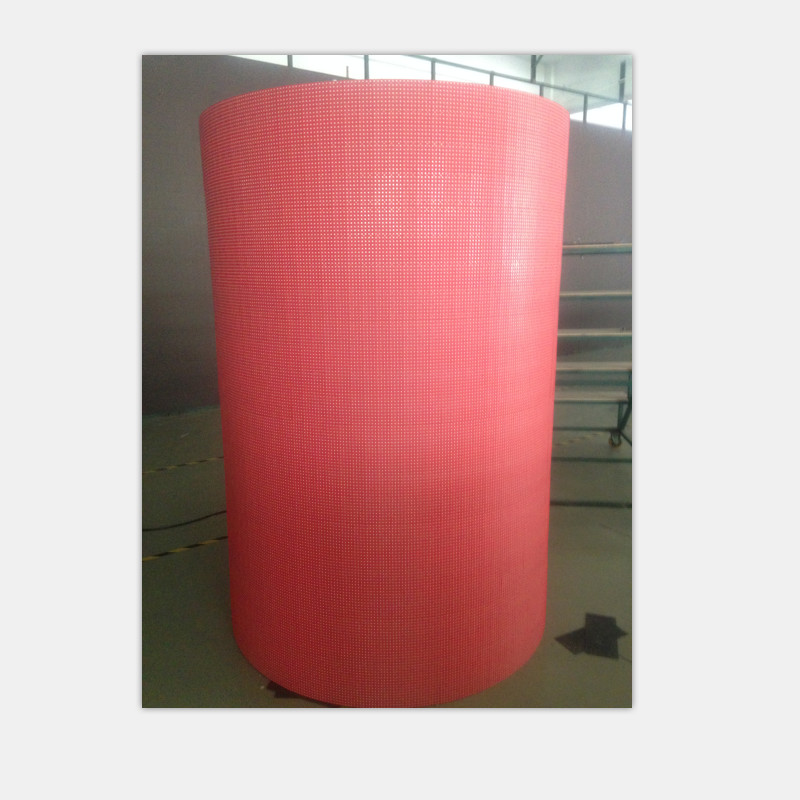

    Outdoor Flexible LED Display Screen Modularization Design 40*320mm Module
