Professional LED Dispaly Manufacturer.
8 Years
| Ask Lasest Price | |
| Brand Name : | SOL COLUR |
| Model Number : | P2 |
| Certification : | SO9001 3C CE FCC IP65 IP68 ISO14001 ROSH |
| Price : | USD 2500-3500 Square Meters |
| Payment Terms : | D/A, L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 5000 Square Meter/Square Meters per Month |
| Delivery Time : | 10 days after received deposit |

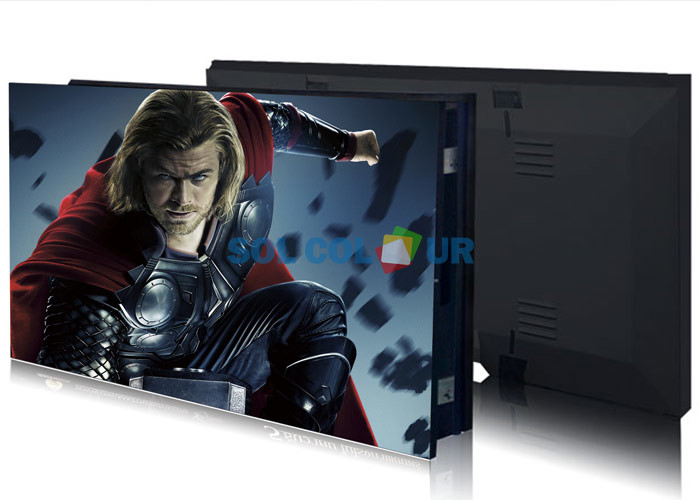

Shenzhen China Factory P2 indoor led display screen/ indoor led module /led cabinets
We produce indoor outdoor and rental led module and led display
P1.25/P1.388/P1.5625/P1.667/P1.875/P1.923/P2/P2.5/P3/P3.91/P4.81
P4/P5/P6/P7.62/P8/P10/P12/P16
INDOOR P2SMD 3IN1 TECHNICAL PARAMETERS
Unit Module | Item | Parameter |
| Model Number | HX-P2-24S | |
| Module size | 192*96 | |
| Pixel pitch | 2mm | |
| Pixels Density | 250000Pixels/m2 | |
| Pixel configuration | 1R1G1B | |
| Package mode | SMD1010Nationstar gold wire | |
| Pixel resolution | 96dots(W)*48dots(H) | |
| Max Power consumpion | 25W | |
| Drive type | Constant drive | |
| Scan mode | 1/24Scan1/24scan | |
| Port type | HUB75-A | |
| Brightness of white balance | ≥850cd/m2 |
Unit Module | Dimension | 576mm*576mm |
| Quanty of Module | 18 | |
| Power supply | 5V/40A*1pcs | |
| Thermal discharge | fan 1pcs | |
| Pixel per cabinet | 288*288 | |
| Best viewing distance | 3M～20M | |
| Best viewing distance | 160°(W) 120°(H) | |
| Temperature | storage:-35℃～+85℃ working:-20℃～+50℃ | |
| Opration humidity | 10%-95% | |
| Thickness | 85mm |
Power | Working voltage | AC220V±10% |
| Average Power consumption | 550W/㎡ | |
| Max.Power consumption | ≤1500W/㎡ | |
| Current | ≤20mA(single LED) | |
Control system | CPU | Pentium4or above P4 |
| Operation system | WIN98/2000/NT/XP | |
| Control method | Synchronization | |
Main technical parameter | Driving device | Constant currentdriver IC |
| Refresh frequency | ≥400HZ | |
| Grey scale/colors | RGB 256,16.7M 256levels of each color(RGB)/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | 800*600/1024*768 |
Company information
SHENZHEN SOL COLUR DISPLAY CO.,LTD. was established in December 2012,Is a leading LED display applications products and solutions provider,Specialized in LED research and development, manufacturing. Sales and servic,Dedicated to providing high-quality, high-performance LED applications and solutions for professional channel customers and end-users at home and abroad.
Our products have been widely used both at home and abroad. Since its foundation, we have become one of the best LED product and solution providers in the country through our unremitting efforts and have won the industry's highest recognition
The development of the company so far, the sales outlets throughout the country, the export products exported to more than 10 countries and regions, 3C, FCC, CE.IFA, IP65, IP68, IS9001, ROSH.AAA and other qualifications, product testing reports, patent certificate
|
|
