Professional LED Dispaly Manufacturer.
8 Years
| Ask Lasest Price | |
| Brand Name : | SC |
| Model Number : | P2 Indoor |
| Certification : | 3C ,FCC ,ROSH ,ISO9001 |
| Price : | Negotiable |
| Payment Terms : | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability : | 5000 Square Meter/Square Meters per Month |
| Delivery Time : | 10 days after received deposit |
High resolution P2mm Fixed use SMD indoor LED display sign for stage led display for advertising video wall
Performance Advantages:
1. High resolution: The pixel is high, so that it can match LCD to
some degree.
2. Super long service life: The luminance parts use the brand of
American Cree as the core material of the electronic signs led
display, thus fundamentally guaranteeing the service life of the
product.
3. Wide visual angle: 160° wide visual angle and the high
consistency of every LED make the audience gain the same
first-class pictures from any angle within this range.
4. Stable performance: We have made unique treatment on the
anti-electromagnetic wage of the led screen to ensure its stable
performance.
5. Seamless splice: The splicing error between the led models is
controlled within ±0.1mm, which is convenient for installation, and
the electronic display signs can be made into any shape according
to customer’s need.
Features
1.Easy to maintain, High resolution, Good contract, Less Weight,
easy to install. Widely used as the information billboard in
Airport, Railway station, and big shopping mall, concert and ect.
2.The brightness of indoor LED signs is adjustable so as to ensure
different environment.
3.Indoor SMD LED signs include PH4mm, PH5mm, PH6mm, PH7.62mm,
PH10mm and PH12mm. P6mm and P7.62mm are most popular pixel pitch.
4.We make best design with high cost- efficiency according to the
actual needs of our customers and we can offer OEM service as well.
5.We produce advertising LED display, rental LED display, traffic
LED display, highway LED display, stadium LED display, curve shape
LED display, text information LED display and so on.
| Pixel pitch :2mm | Module size : 128mm*128mm | Cabinet size :512x512×75(mm) | ||||||
| Physical density : 250000dots/㎡ | Pixel configuration: 1R1G1B | Modules resolution: 64*64=4096 DOTS | ||||||
| Modules weight: 0.3kg | ||||||||
| Cabinet resolution :256X256 | Cabinet 0.262144m² | |||||||
| MAIN TECHNICAL PARAMETERS | ||||||||
| Best viewing distance :2m～15m | Viewing angle Level≧160°Optional | vertical≥120°Optional | ||||||
| Average power consumption＜400W/㎡ | Maximum power consumption＜800w/㎡ | Control mode: synchronous control | ||||||
| Display card: DVI | Driving method :1/32 scaning | Frame Frequency ≧60Hz | ||||||
| Refresh frequency≧1920Hz | Equilibrium brightness ≧800cd/㎡ | Display working voltage(VAC) | ||||||
| Brightness adjustment | Lighting sensor adjust automaticly | 16 grade adjustable | ||||||
| Adjust by bands with software:100 grade adjustable | ||||||||
| Computer system | ||||||||
| WIN98,WINXP,WIN2000,etc | ||||||||
| Input signal | ||||||||
| RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION | ||||||||
| Control system | ||||||||
| PCTV nonlinearity card, DVI display card,Linsn control system | ||||||||
| Mean free error time ≧5000 hours | Lifetime: 75000～100000 hours | Pixel out of control rate ＜0.0002 one case | ||||||
| Project classification: PH1.923-26S | Package : SMD 3in1 | LED SMD 1515 | ||||||

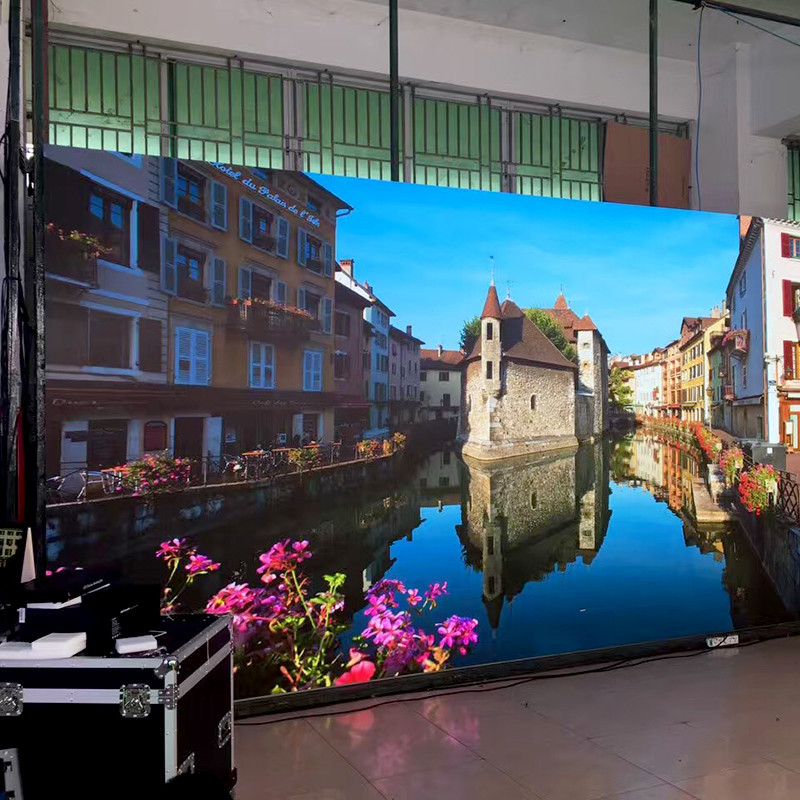

LED Application:
exhibition ,science& technology museum stage ,bar , entertainment
and public place. The indoor full color P2 electronic led display
boards have high reliability, saturated colors, high brightness,
low power consumption, long service life and wide visual angle, so
that they are widely used in theatre, sports field, TV studio,
exhibition hall, conference center, security trading center,
airport, superstore, bus station, business building, hotel and
stage.
Aging test
|
|
