Professional LED Dispaly Manufacturer.
8 Years
| Ask Lasest Price | |
| Brand Name : | SC |
| Model Number : | P8 Outdoor |
| Certification : | CE.3C,FCC,ROSH,ISO9001 |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability : | 5000 Square Meter/Square Meters per Month |
| Delivery Time : | 10 days after received deposit |
P8 Outdoor LED Video Wall 7000Brightness P8 Outdoor Waterproof Full Color Double Sided LED Display
Product Features:
1, High protection grade of front IP65/rear IP54, enables it to be
used in any outdoor harsh environment.
2, High refresh rate, high grey scale level and high accurate color
consistency guarantee the vivid pictures and perfect videos.
3, High brightness ensures the spectators far from the screen can
still enjoy what is shown, even under direct sunlight.
4, Super wide viewing angle and have best view in different
position, give you visual enjoyment.
5, SMD2727 technology could guarantee higher flatness and better
performance.
6, Aviation plug and quick lock is used, bringing easier cables
connection and quicker assembly of cabinets to save time.
7, Low power consumption and fast heat dissipation with dual
channel heat dissipation
8, Support a series of detection functions, for example detection
of cables failure, detection whether the door of cabinets closed or
not, fans’ speed monitoring, three-way voltage monitoring and
temperature monitoring etc.
9, Widely used in outdoor advertising, toll gate, supermarket,
shopping mall, sport game etc.
Parameter
Unit Module | Item | Parameter |
| Model Number | SF-SS8-5-A | |
| odule size | 320mm*160mm | |
| Pixel pitch | 8mm | |
| Pixels Density | 15625 Pixels/m2 | |
| Pixel configuration | 1R1G1B | |
| LED Package mode | Nationstar SMD3535 | |
| Pixel resolution | 40dots(W)*20dots(H) | |
| Max Power | 30W | |
| Module thickness | 22mm | |
| Module Weight | 0.37kg | |
| Drive type | Constant drive | |
| Scan mode | 1/5 | |
| Port type | HUB75-A | |
| Brightness of white balance | ≥7000～7500cd/m2 | |
LED Cabinet | Dimension | 960mm*960mm*100 mm |
| Monomer Module Number | 24pcs | |
| Power supply | 5V/40A*4 pcs | |
| Thermal discharge | fan 2pcs | |
| Pixel per cabinet | 120mm*120mm | |
| Best viewing distance | 8M～15M | |
| Best viewing angle | 120°(W) 110°(H) | |
| Temperature | storage:-35℃～+85℃ working:-20℃～+50℃ | |
| Relative humidity | 10%-95% | |
| Thickness | 122mm | |
Power | Working voltage | AC220V±10% |
| Average Power consumption | 330W/㎡ | |
| Max.Power consumption | ≤1100W/㎡ | |
| Current | ≤20mA(single LED) | |
Control system | CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
Main technical parameter | Driving device | Constant drive IC |
| Refresh frequency | ≥1200HZ | |
| Grey scale/colors | 4096,16.7M Color 4096gray level/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | ≥800*600/1024*768 | |

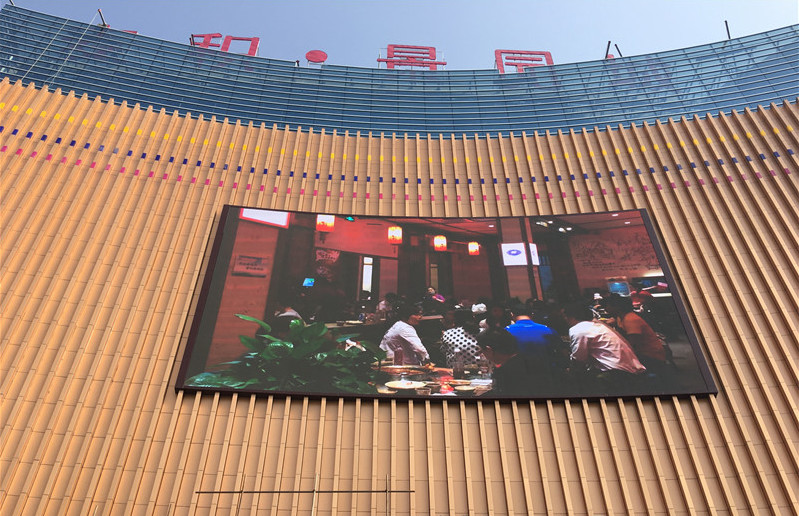

Project Case
|
|
