Professional LED Dispaly Manufacturer.
8 Years
| Ask Lasest Price | |
| Brand Name : | SC |
| Model Number : | SMDP3 |
| Certification : | CCC IP68 CE ISO9001 ROSH |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T |
| Supply Ability : | 5000 Square Meter/Square Meters per Month |
| Delivery Time : | 10 days after received deposit |
192mm*192mm, SMD P3 Indoor Full Color Led Display,High Refresh and High Resolution SMD P3, RGB LED Panel
PARAMETERS:
| ItemS | Parameter |
| Model Number | HX-P3-32S | |
| Module size | 192mm*192mm | |
| Pixel pitch | 3mm | |
| Pixels Density | 111111/m2 | |
| Pixel configuration | 1R1G1B | |
| Package mode | Nation Star SMD2121 | |
| Pixel resolution | 64dots(W)*64dots (H) | |
| Max Power | 15W | |
| Weight | 0.28kg | |
| Drive type | Constant drive | |
| Scan mode | 1/32scan | |
| Port type | HUB75-A | |
| Brightness of white balance | ≥1000cd/m2 |
Cabinet | Dimension | 576mm*576mm |
| Monomer Module Number | 9pcs | |
| Power supply | 5V/60A*1pcs | |
| Thermal discharge | fan 2pcs | |
| Pixel per cabinet | 192*192 | |
| Best viewing distance | 3M～10M | |
| Best viewing angle | 110°(W)110°(H) | |
| Temperature | storage:-35℃～+85℃ | |
| Relative humidity | 10%-95% | |
| Thickness | 55mm |
| Working voltage | AC110～220V±10% |
| Average Power consumption | 150W/㎡ | |
| Max.Power consumption | <650W/㎡ | |
| Current | <20mA(single LED) | |
| CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
| Driving device | Constant drive IC |
| Refresh frequency | >1080HZ | |
| Grey scale/colors |
| |
| MTBF | >9000hours | |
| Power switch | Automatic switch | |
| Display Mode | ≥800*600/1024*768 |
Company Information:
SHENZHEN SOL COLUR DISPLAY CO.,LTD. was established in December
2012,Is a leading LED display applications products and solutions
provider,Specialized in LED research and development,
manufacturing. Sales and servic,Dedicated to providing
high-quality, high-performance LED applications and solutions for
professional channel customers and end-users at home and abroad.
Our products have been widely used both at home and abroad. Since
its foundation, we have become one of the best LED product and
solution providers in the country through our unremitting efforts
and have won the industry's highest recognition
The development of the company so far, the sales outlets throughout
the country, the export products exported to more than 10 countries
and regions, 3C, FCC, CE.IFA, IP65, IP68, IS9001, ROSH.AAA and
other qualifications, product testing reports, patent certificate
We produce indoor,outdoor and rental led module and led diaplay
P1.25/P1.388/P1.5625/P1.667/P1.875/P1.923/P2/P2.5/P3/P4/P5
P7.62/P6/P8/P10/P12/P16/P3.91/P4.81/P5.95/P2.976
All can be custo

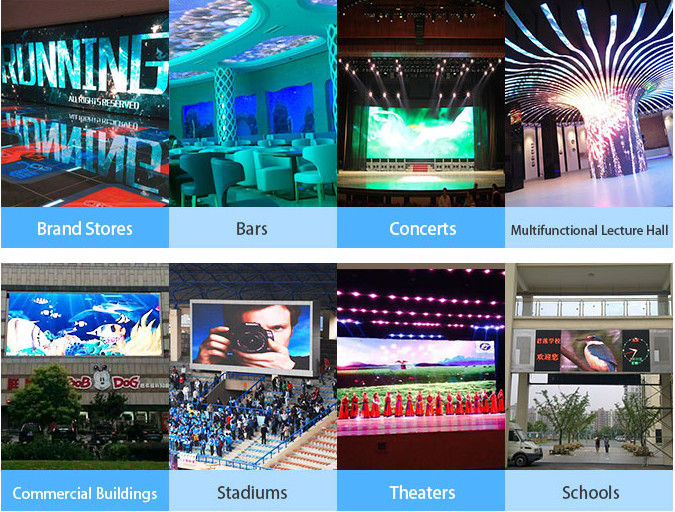

Application:
Project Cases:
|
|
