Professional LED Dispaly Manufacturer.
8 Years
| Ask Lasest Price | |
| Brand Name : | SC |
| Model Number : | P6.25 Indoor |
| Certification : | CE.3C,FCC,ROSH,ISO9001 |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability : | 5000 Square Meter/Square Meters per Month |
| Delivery Time : | 10 days after received deposit |
Indoor Rental Led Screen 250*250mm Module Rental use Indoor LED
video wall panel p6.25mm
Product Quick Details:
A, Die-cast aluminum cabinet 500x1000mm and 500X500mm
B, Slim and Light
C, Seamless splicing
Product Features:
1, Fanless design, excellent natural heat dissipation achieves zero
noise, providing quiet working environment, best choice for indoor
rental events.
2, User-friendly locking system, aviation plug and three handles on
each cabinet makes disassembly and maintenance easy and convenient.
Unique anti-burial design to avoid the patchwork.
3, SMD guarantee super wide viewing angle, higher flatness and
better performance, offers you clear and natural images in all
directions.
4, IC MBI5124 is used, high refresh rate, high grey scale level and
high accurate color consistency guarantee the vivid pictures and
perfect videos.
Parameter
Led Module
1．LED Light Parameter
| LED | LED brand | LED type | wave Length(nm) | Average Brightness | Test Condition |
| Red(R) | Sanan | SMD | 615-625nm | 150-300mcd | 25℃,20mA |
| Green(G) | Huacan | 515-535nm | 350-550mcd | 25℃,10mA | |
| Blue(B) | Huacan | 465-475nm | 50-85mcd | 25℃,5mA |
2．Pixel/Module
| No | Item | Parameter |
| 1 | Pixel Pitch | 6.25 mm |
| 2 | Pixel Configuration | 1R1G1B / R:G:B=3:6:1 |
| 3 | LED Lamp | Full color |
| 4 | Density | 28224dot/m2 |
| 5 | Module Size | 250*250mm |
| 6 | Module Pixel | 42*42=1764dot |
| 7 | Module Thickness | 15mm |
| 8 | Module Weight | 0.45kg |
| 9 | Module Power | ≤25W |
| 10 | Drive Valtage | DC5V |
| 11 | Module Electric Current | 6.2-6.4A |
| 12 | PortType | HUB-38D/B |
3．Screen Parameter
| No | Item | Parameter |
| 1 | Standard Cabinet Size | 500mm*500mm*75mm /1000mm*1000mm*75mm |
| 2 | Cabinet Weight | 5.5KGS/13.75KGS |
| 3 | Brightness/Adjustment | ≥800cd/m², Level 16- Automatic / Level 100-Manual operation |
| 4 | View Angle | ≥120°(Vertical),≥120°(Horizontal) |
| 5 | Best View Distance | 5-15m |
| 6 | Grey Scale | Within 65536 Step |
| 7 | Frame Frequency | ≥60Hz |
| 8 | Refresh Rate | ≥720Hz |
| 9 | Signal Input Source | Composite, S-video, Component, VGA, DVI, HDMI, SDI, HD-SDI |
| 10 | Scan Mode | 1/10Scan |
| 11 | Drive IC | 5020 |
| 12 | Module Qty / M2 | 16 |
| 13 | Display Color Qty | 16777216 |
| 14 | Continuous Working Time | >24(Hrs) |
| 15 | Screen Lifespan | >100,000(Hrs) |
| 16 | MTBF | >5000(Hrs) |
| 17 | Max. power consumption | 500W/㎡ |
| 18 | Ave. power consumption | 160W/㎡ |
| 19 | Out of control pixel rate | ≥3/10,000(discrete distribution) |
| 20 | Control Distance | 100M(Ethernet) 500M(Multi-fiber) 10KM(Single-fiber) |
| 21 | Flatness | Screen Surface≤0.5mm,Pixel Pitch≤0.3mm |
| 22 | Operation Temperature | -10℃～+50℃ |
| 23 | Working Humidity | 10%～98%RH |
| 24 | Storage Temperature | -40℃～+85℃ |
| 25 | Software Connection | Standard Computer Connection, Compatible With Windows,Unix,Novell |
| 26 | protection system | Over temperature/overload/power/image compensation/nonlinear correction |
| 27 | Working Voltage | 200~240 V |
| 28 | Dielectric Strength | 50HZ/1500V(AC RMS)/1min |
| 29 | Temperature Rise | Metal≤40K,Insulation≤65K , After Heat Balance |
| 30 | IP Grade | IP65 |
| 31 | Computer display mode | 1024*768 |
| 33 | Media Player | LED Professional Media Player |

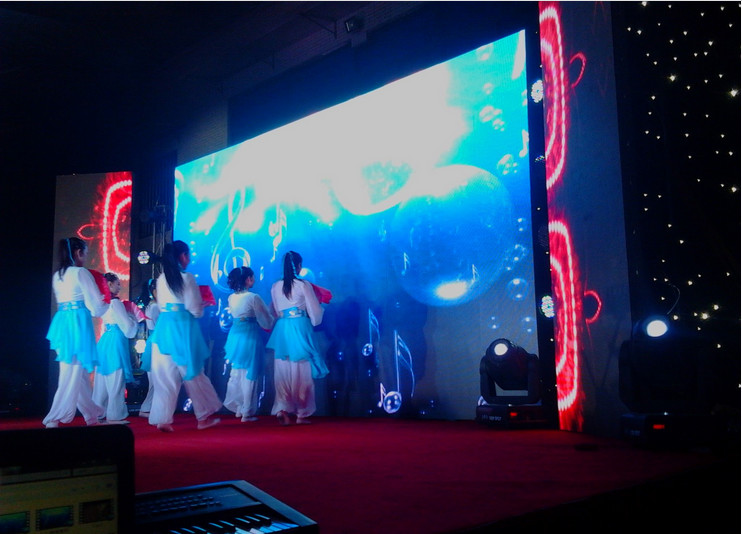

Project Cases
|
|
