| Brand Name : | SOL COLUR |
| Model Number : | P1.667 |
| Certification : | SO9001 3C CE FCC IP65 IP68 ISO14001 ROSH |
| Price : | USD 2000-2500 Square Meters |
| Payment Terms : | D/A, L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 5000 Square Meter/Square Meters per Month |
| Delivery Time : | 10 days after received deposit |

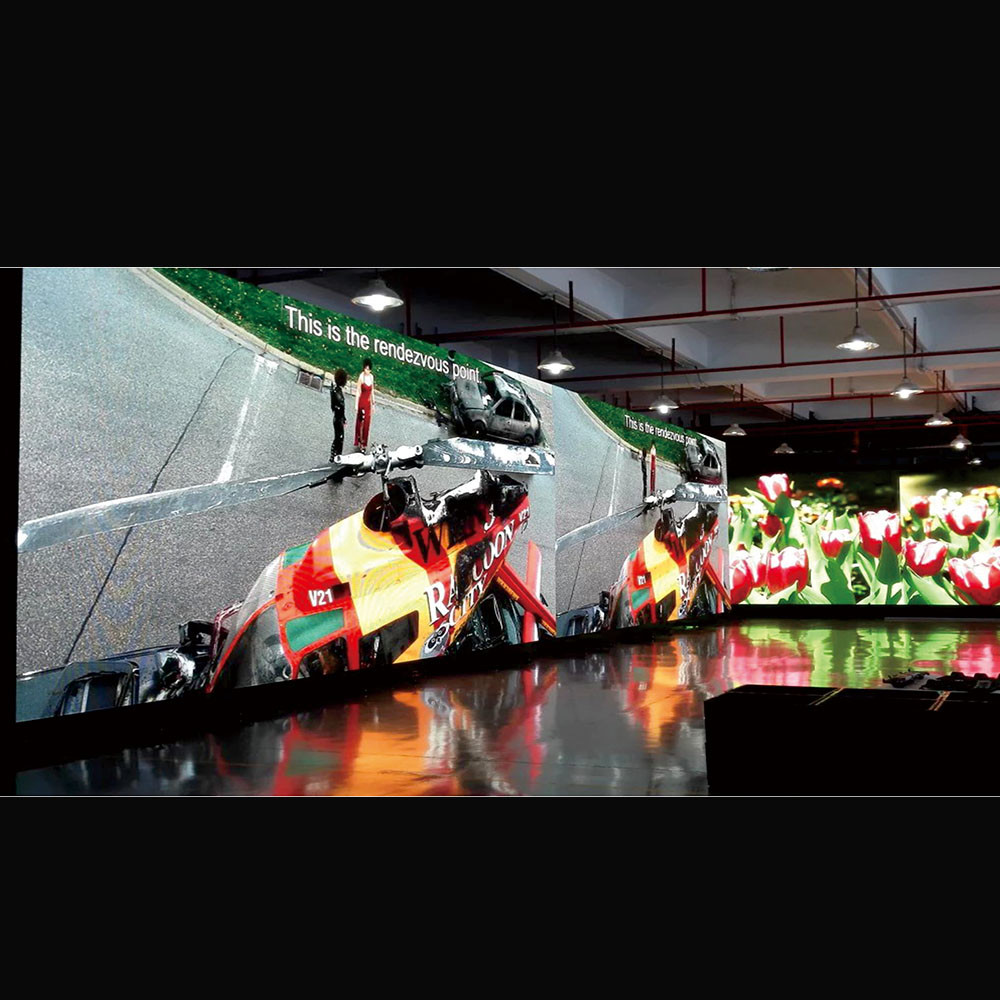

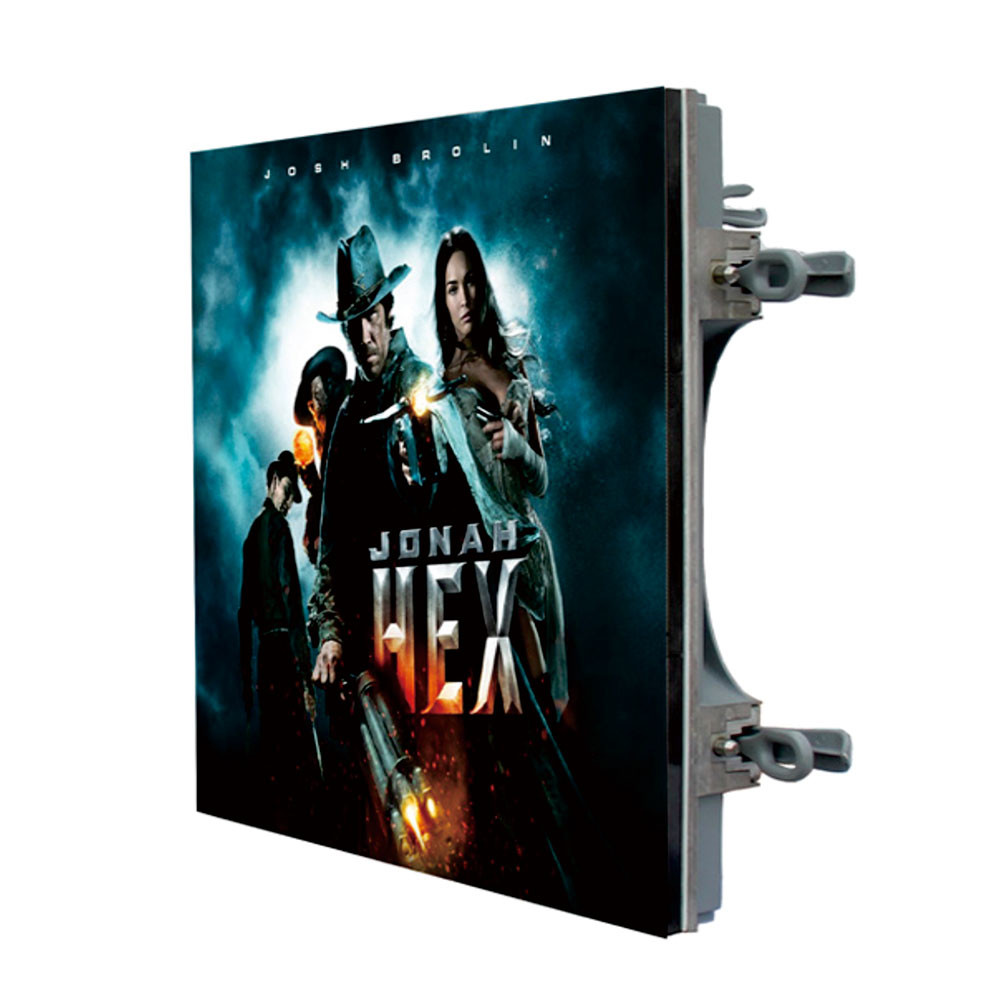

Full Color P1.667 Small Pixel Pitch LED Display Panel High Definition For Illumination
P1.25/P1.388/P1.5625/P1.667/P1.875/P1.923/P2/P2.5/P3/P3.91/P4.81
P4/P5/P6/P7.62/P8/P10/P12/P16
Specifications of P1.667mm small pixel led display screen
Unit Module | Item | Parameter |
| Model Number | HX-P1.667-48S | |
| Module size | 240*240 | |
| Pixel pitch | 1.667mm | |
| Pixels Density | 360000Pixel /m2 | |
| Pixel configuration | 1R1G1B | |
| Package mode | SMD1010 | |
| Pixel resolution | 96dots(W)*48dots(H) | |
| Max Power consumpion | 40W | |
| Drive type | Constant drive | |
| Scan mode | 1/48 1/48scan | |
| Port type | HUB75-A | |
| Brightness of white balance | ≥2000cd/m2 |
Unit Module | Dimension | 480mm*480mm |
| Quanty of Module | 4 | |
| Power supply | 5V/40A*1pcs | |
| Thermal discharge | fan 1pcs | |
| Pixel per cabinet | 288*288 | |
| Best viewing distance | 1M～20M | |
| Best viewing distance | 160°(W) 120°(H) | |
| Temperature | storage:-35℃～+85℃ working:-20℃～+50℃ | |
| Opration humidity | 10%-95% | |
| Thickness | 85mm |
Power | Working voltage | AC220V±10% |
| Average Power consumption | 550W/㎡ | |
| Max.Power consumption | ≤1500W/㎡ | |
| Current | ≤20mA(single LED) | |
Control system | CPU | Pentium4or above P4 |
| Operation system | WIN98/2000/NT/XP | |
| Control method | Synchronization | |
Main technical parameter | Driving device | Constant currentdriver IC |
| Refresh frequency | ≥800HZ | |
| Grey scale/colors | RGB256 16.7M 256levels of each color(RGB)/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | 800*600/1024*768 |
